Pushback Small Bot Plastic Structure

2025

I modeled a custom plastic gusset for the Push Back small bot that connects the main structure to the drivetrain at a very specific angle. It has aggressive pocketing for a stylistic choice and to reduce weight, and the holes are placed according to the angle bar angle.

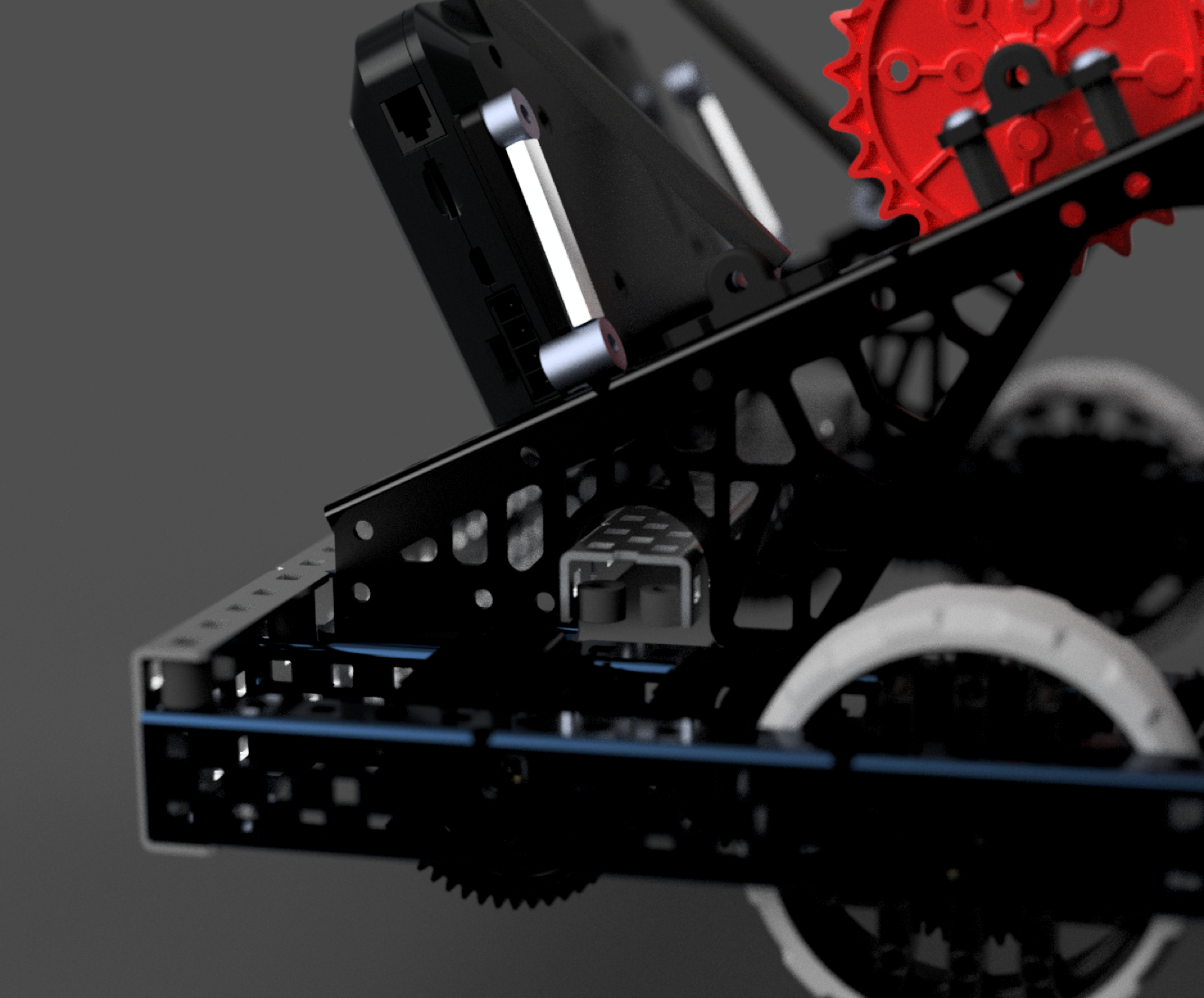

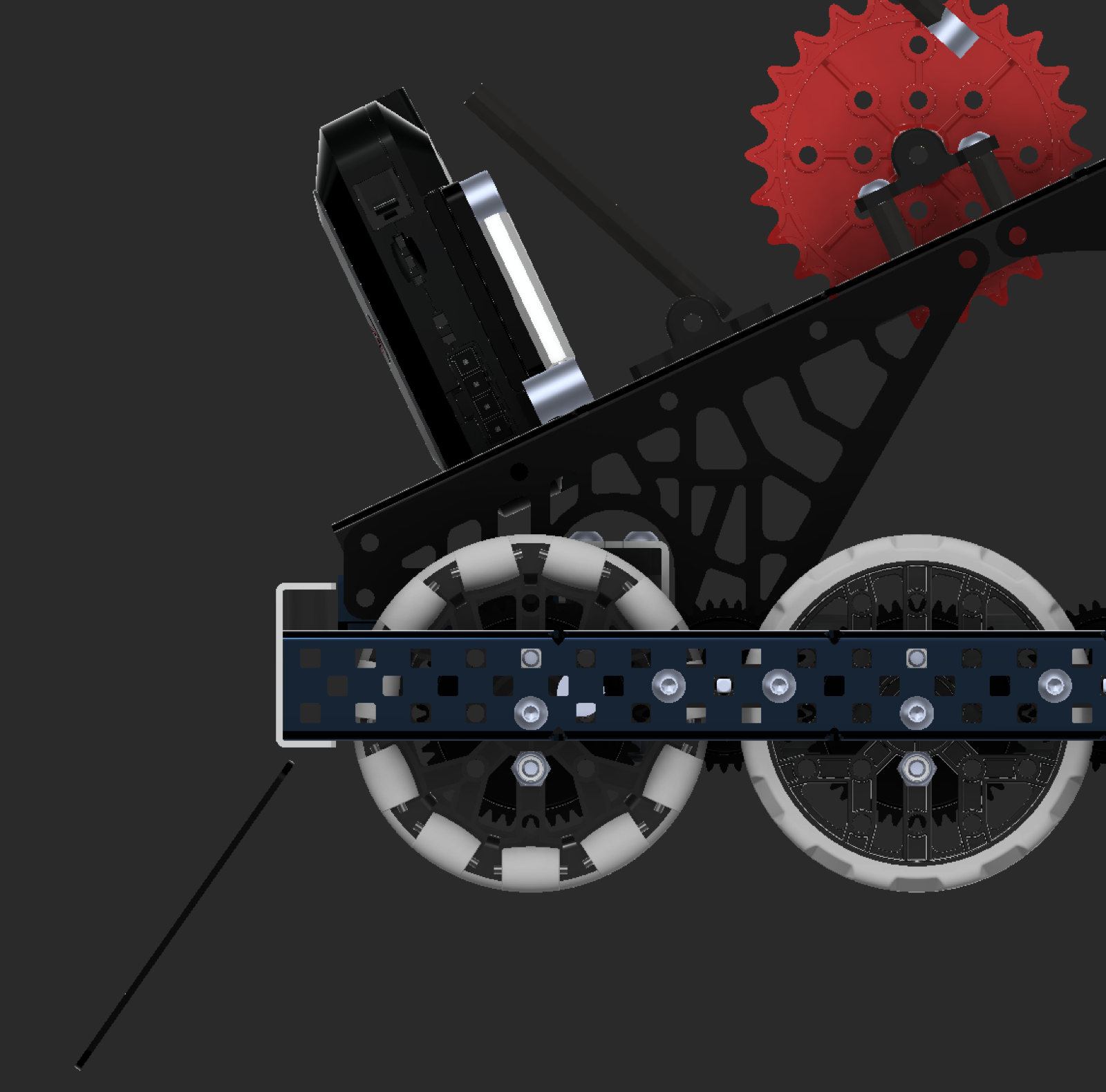

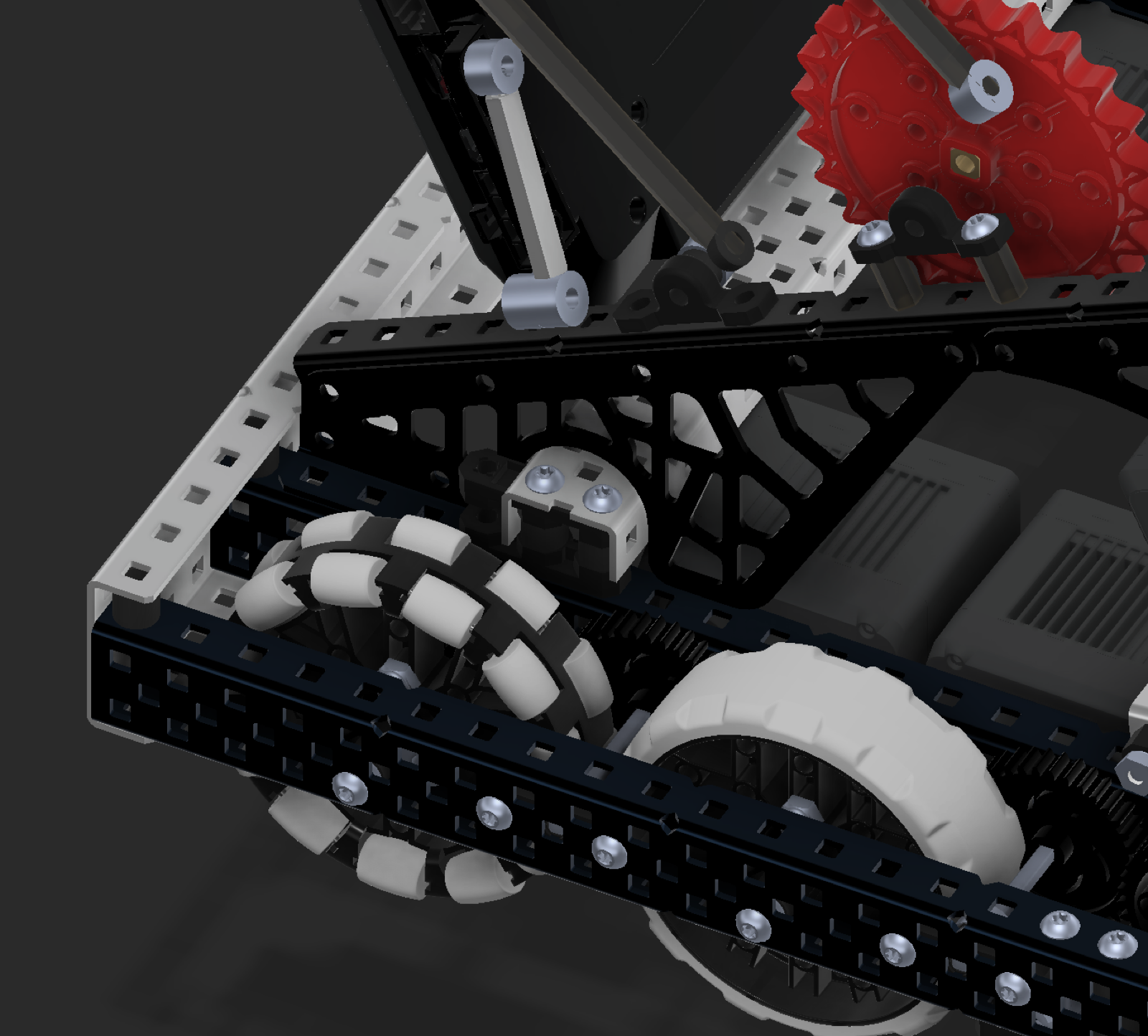

CAD view of the plastic C channel structure CAD view of the plastic structure part CAD render of the plastic structure part
