Pushback Small Bot 90 Gusset

2025

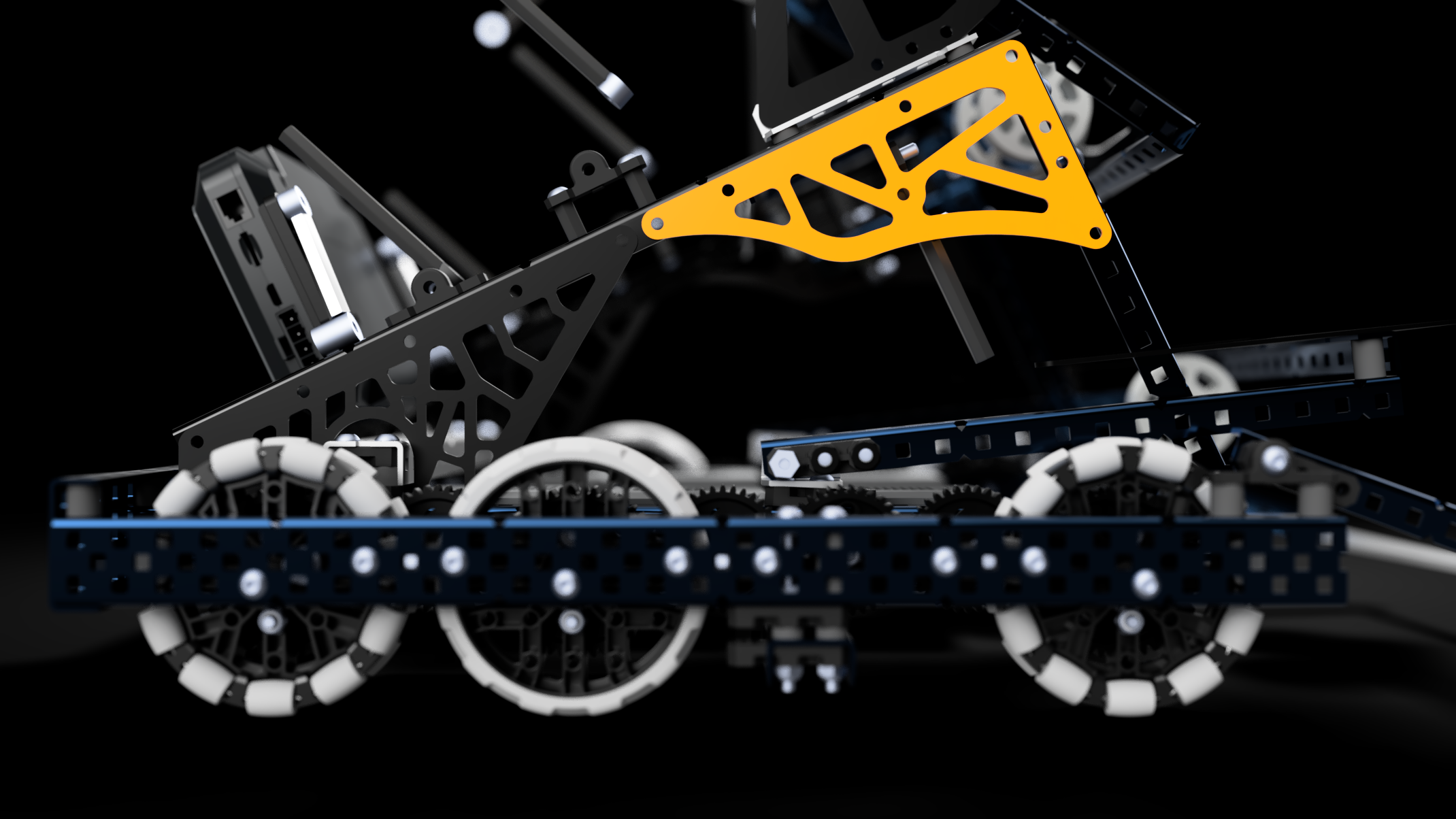

Orange 90 degree gusset mounted on the Push Back small bot frame

I designed a custom 90 degree gusset to tie together frame members on the Push Back small bot. The bracket braces one side of the robot while also serving as a motor mount.

Methods: CAD, laser cutting
Tools: CAD software, laser cutter

1. Process

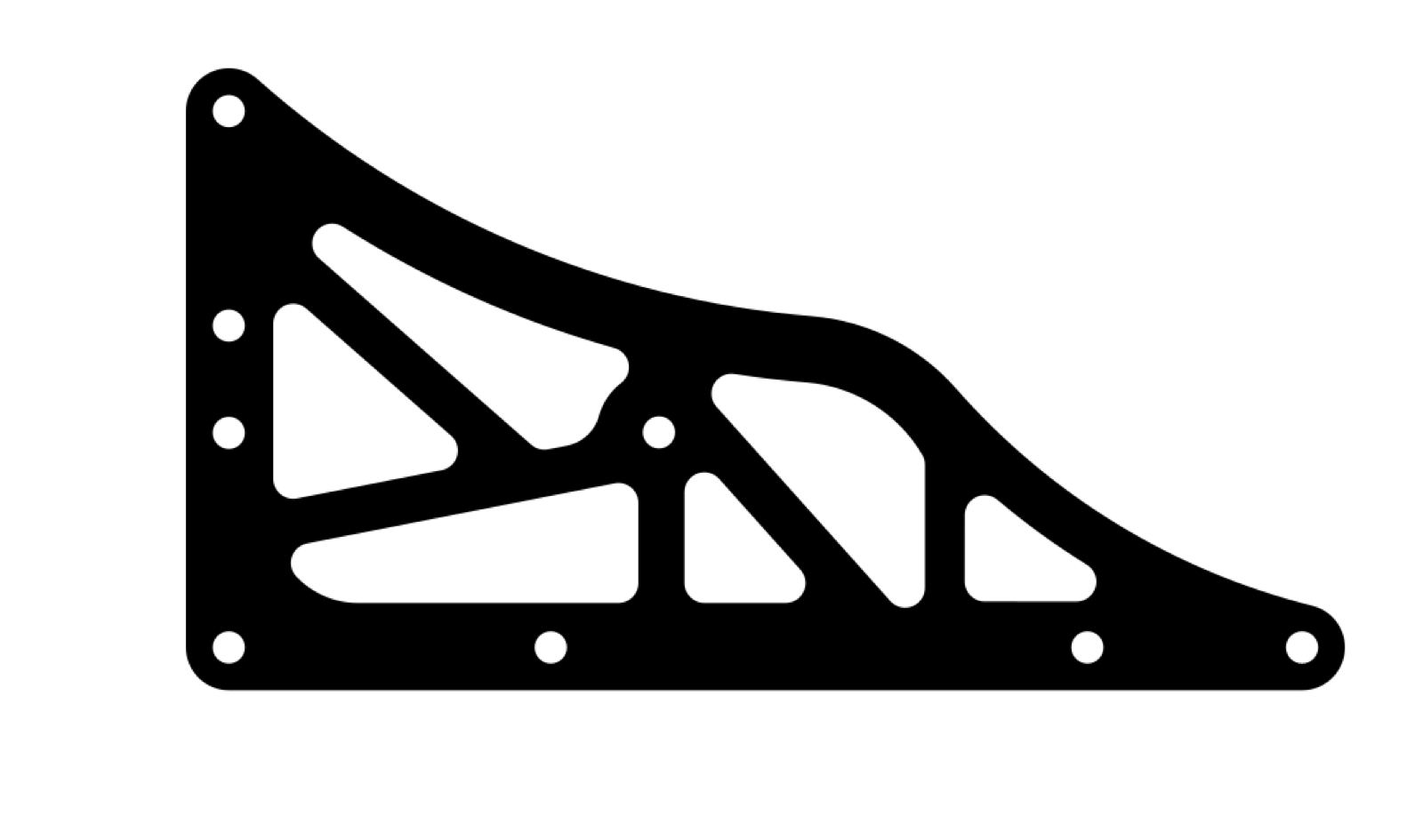

I started with a flat bracket that could connect the frame members and hold the motor mount in place. I then cut pockets into the profile to remove material while leaving a continuous structure around the mounting points.

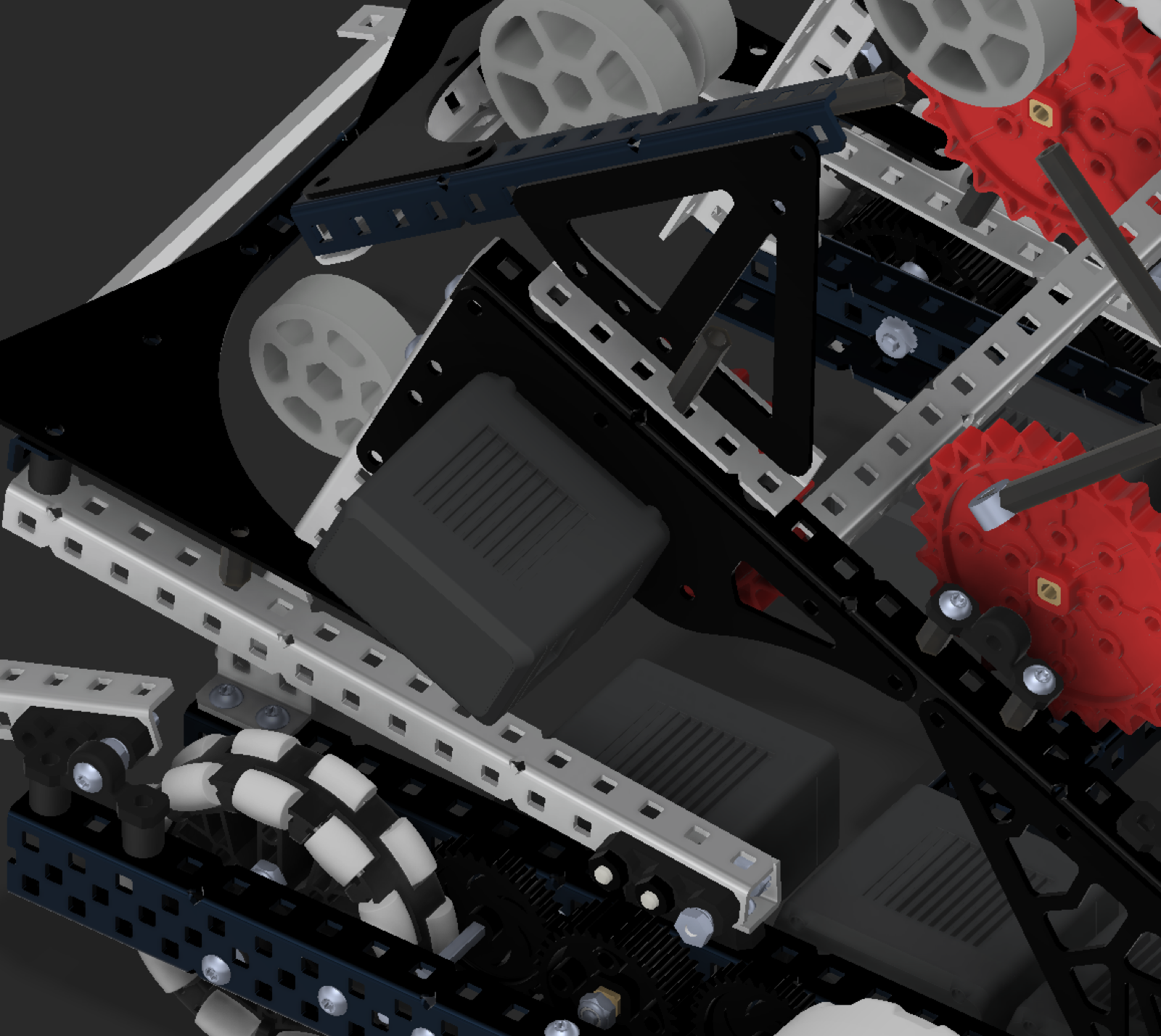

The gusset mounted between frame members beside the motor mount

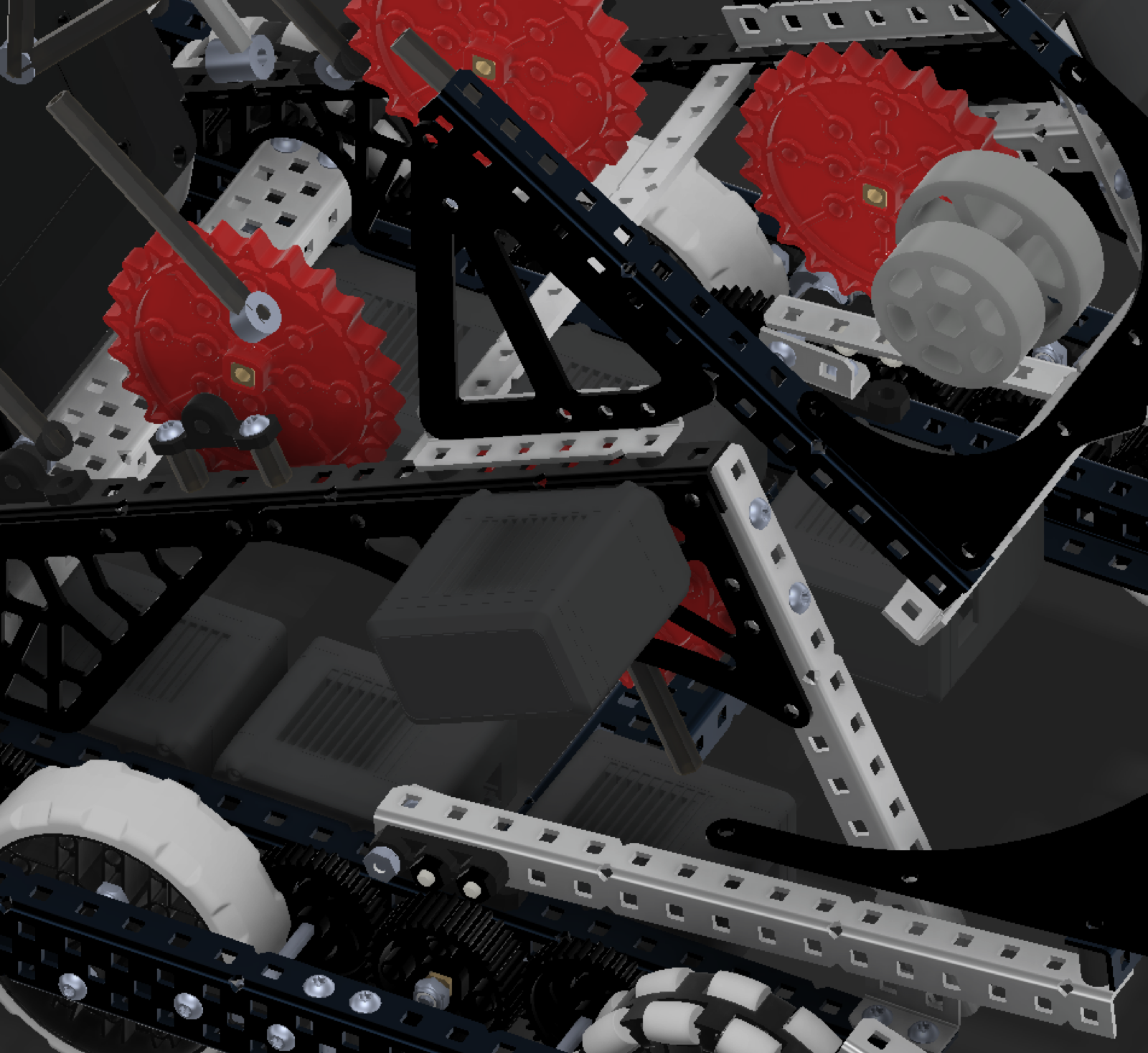

The gusset bracing the side of the robot frame

2. Final Design

The finished robot uses the orange gusset as a visible brace along the side of the frame. Its cutouts keep the bracket open while the solid edges and mounting points connect it back to the surrounding structure.
