Pneumatic Panel

2023

This is the pneumatic panel that handles the bleed air and air conditioning controls. I drew it as a vector file with the engraving in one color and the cut lines in another, laying out labels such as RECIRC FAN, ISOLATION VALVE, L PACK, R PACK, WING ANTI ICE and APU BLEED. The two files show the labeled artwork and the matching sheet of cut and engrave paths ready for the laser.

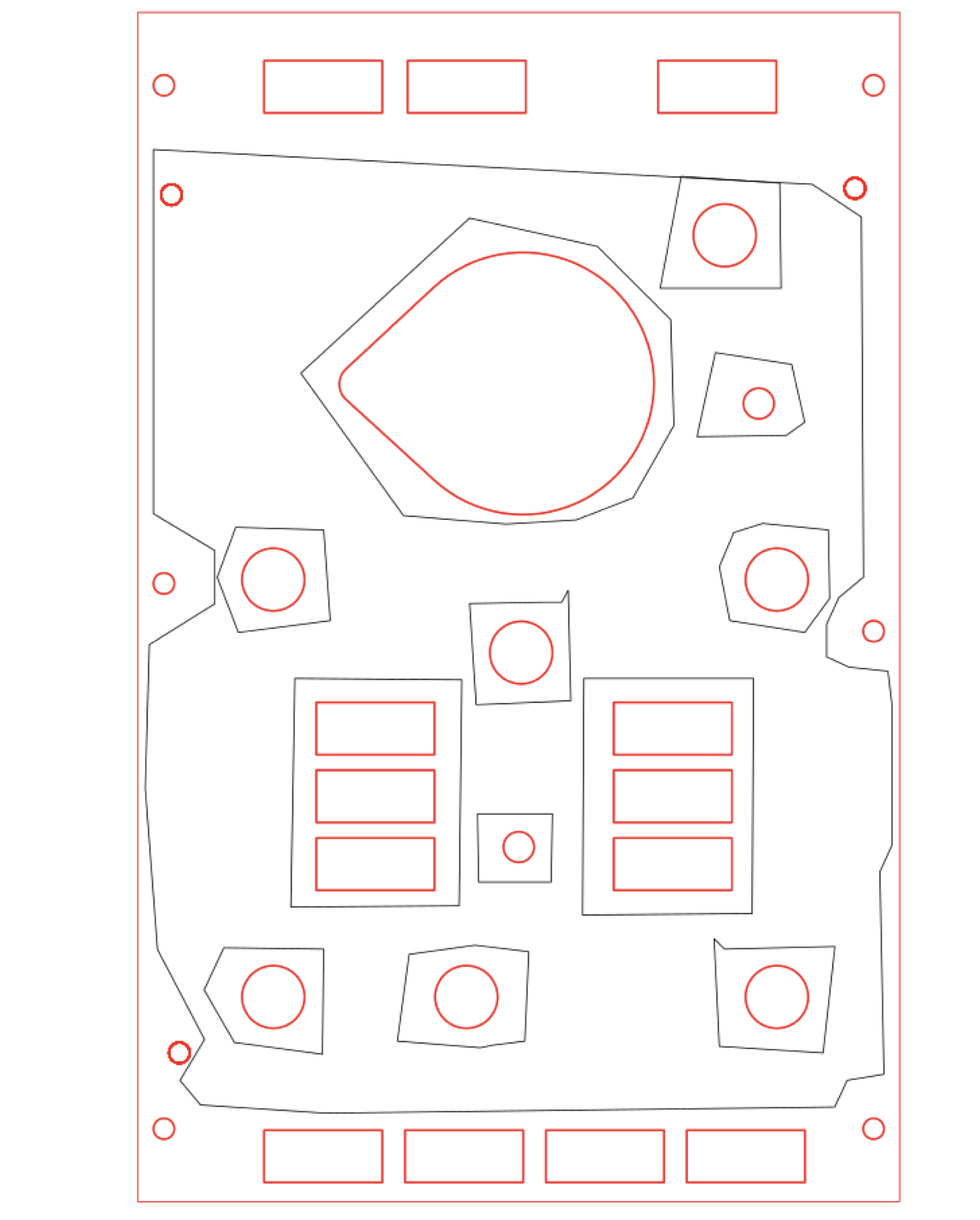

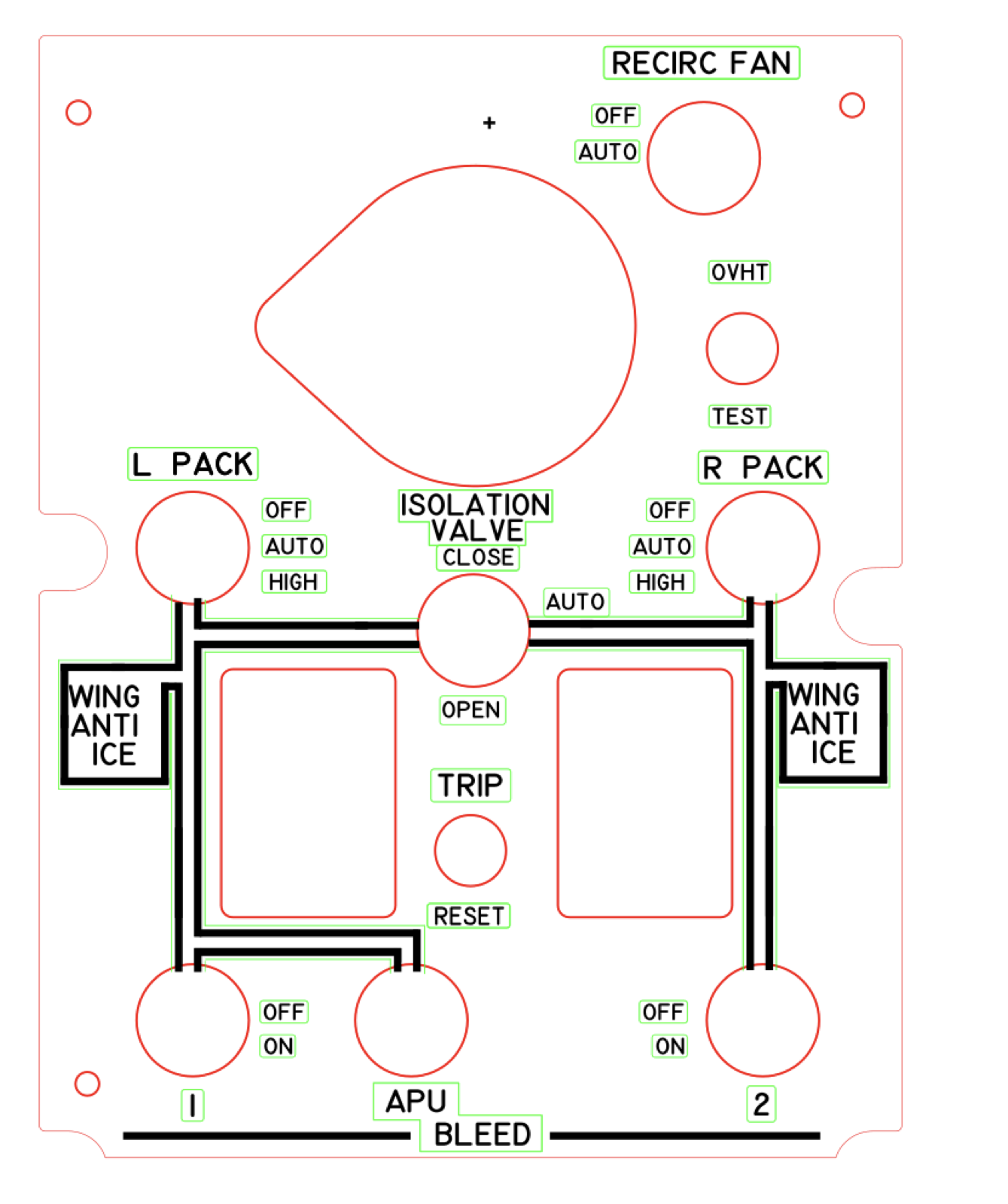

Pneumatic panel artwork with engraved labels for recirc fan, isolation valve, packs and wing anti ice Cut and engrave path layout for the pneumatic panel showing holes and rectangular openings
