Override Robot

2025

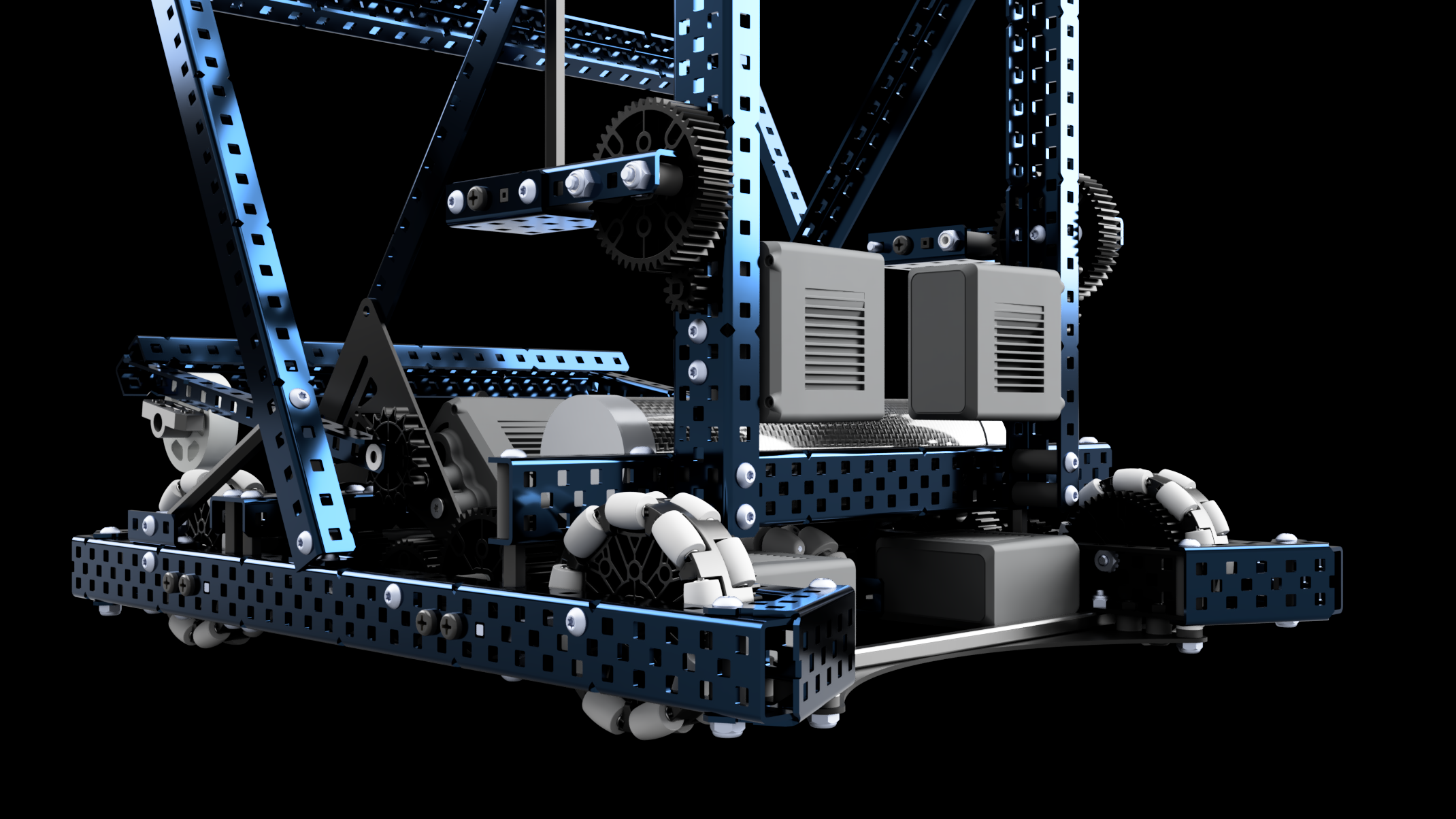

CAD render of the Override Robot with its lift, intake, and drivetrain

This is a cadded concept for this year of VEX robotics. The drivetrain is currently 44W on 2.75 inch wheels at 450 RPM. That ratio is good because it sits super low to the ground and keeps a low center of gravity. This season I really emphasize packaging and a low center of gravity, because the lifts are lifting up high.

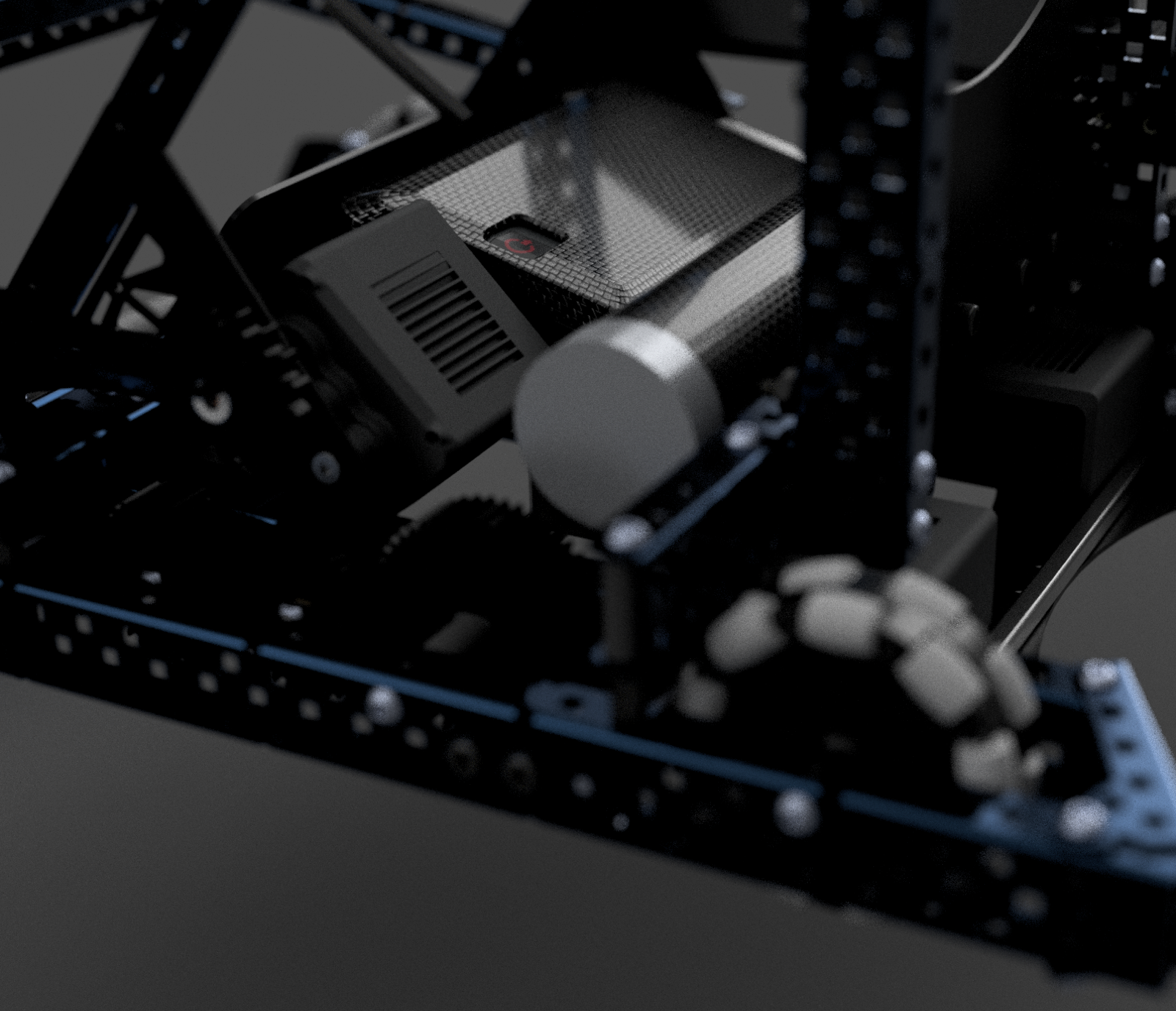

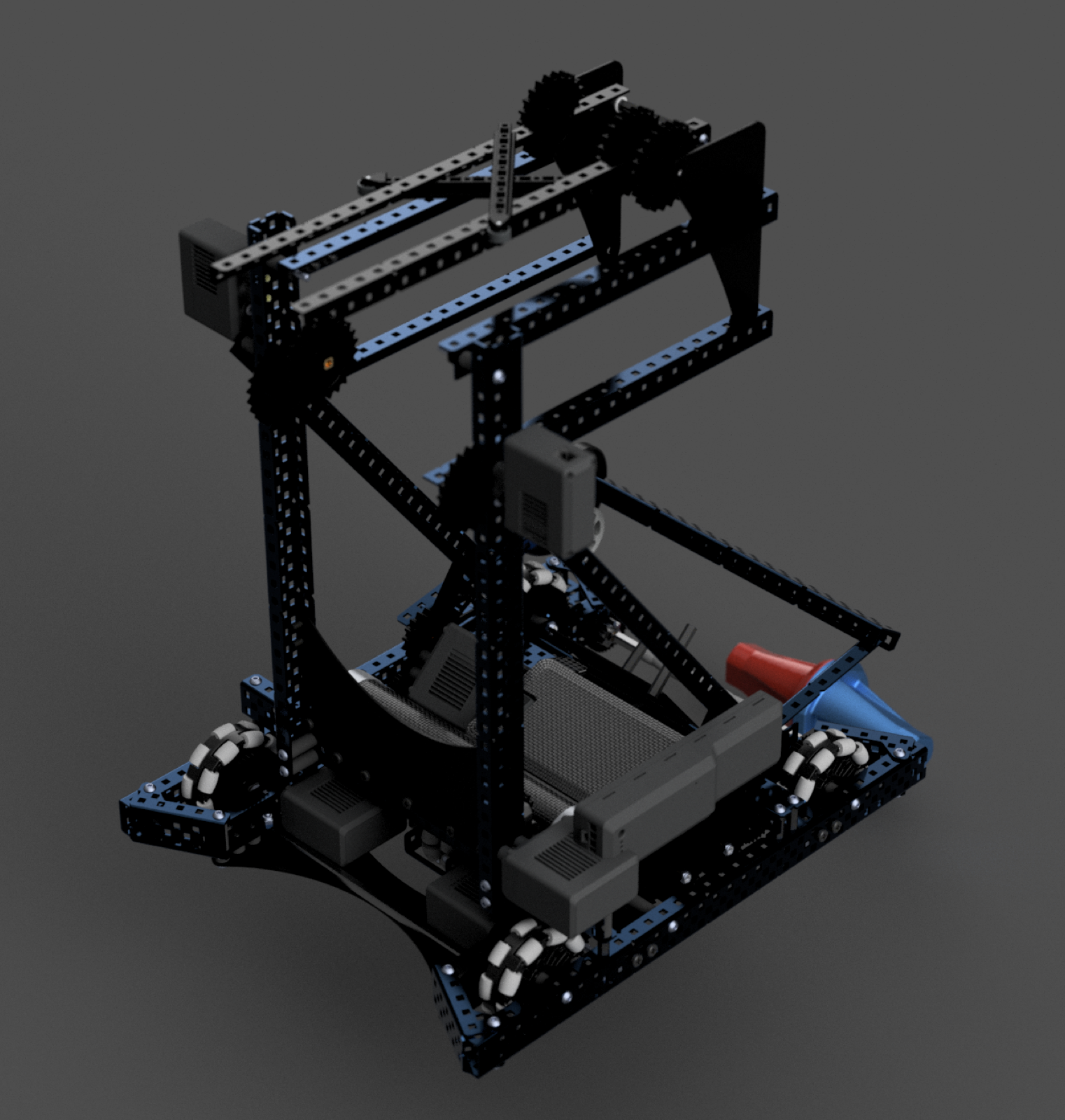

CAD render of the full Override robot with its omni drivetrain, intake, and upper scoring structure Close CAD render of the intake and internal motors and gearing

The lift is the unique part. It is a 4 bar with a free arm attached to the end, so it acts like a dr4b lift but has a ton more functionality. The intake feeds both game pieces through the robot, and then the lift picks them up.

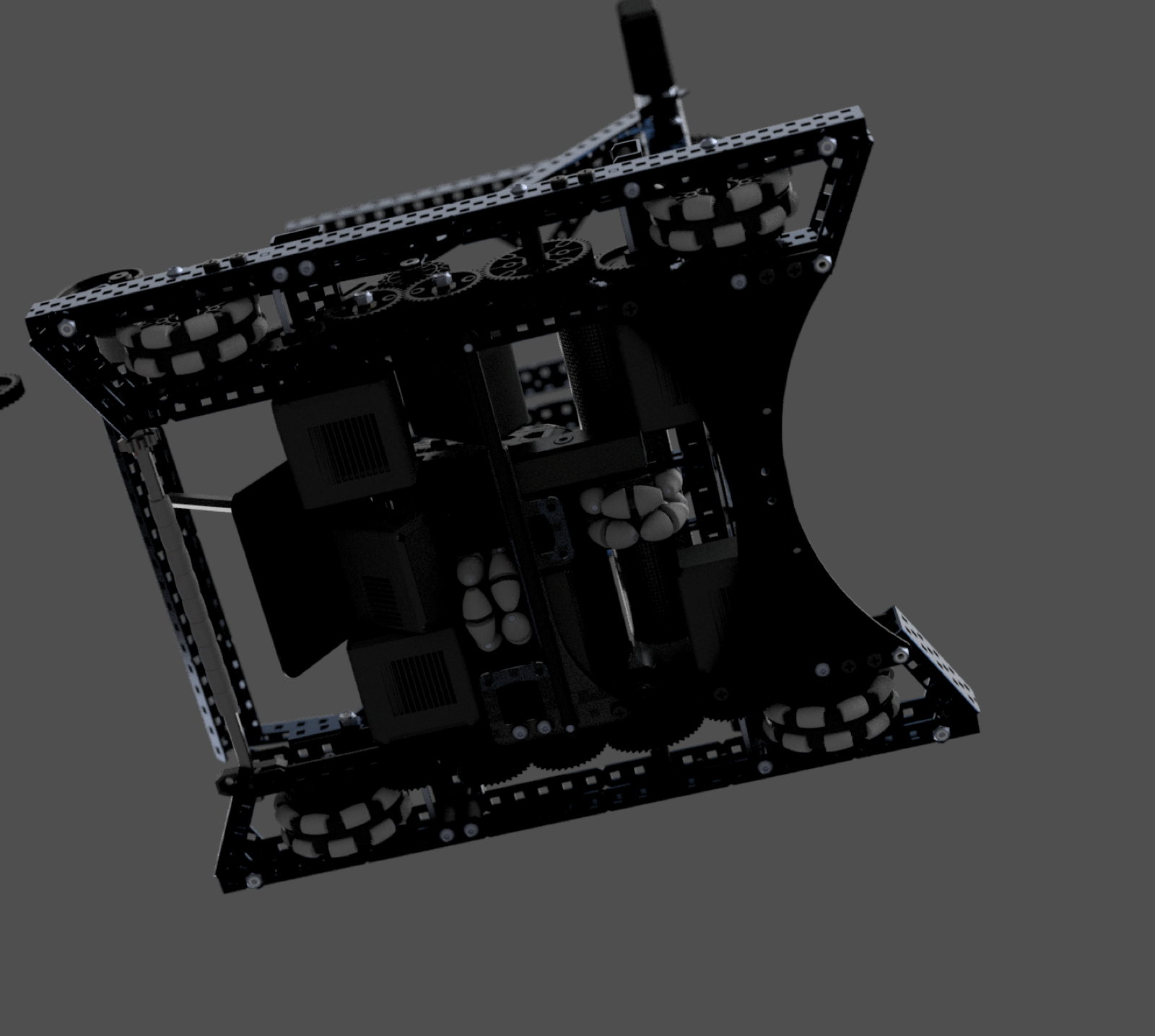

Underside CAD render showing the mesh conveyor, motors, and drivetrain layout
