Overhead Panel Wood Frame

2023

This is the wooden frame that carries all of the overhead panels. I designed the pieces as flat vector parts and laser cut them from plywood so they slot together into a rigid box with long rails and dividers. I assembled the frame on my workbench and test fitted a few finished panels into their openings.

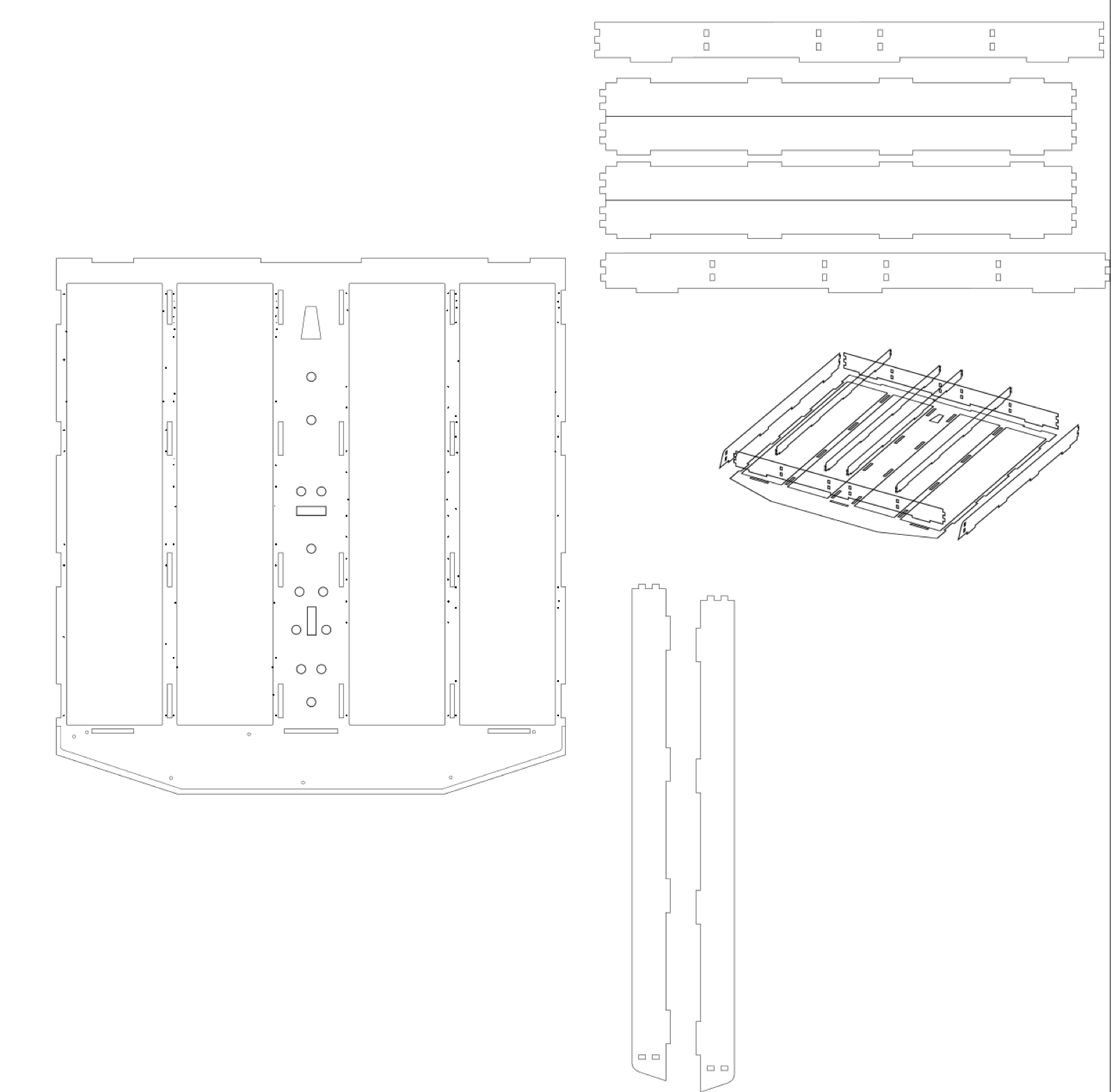

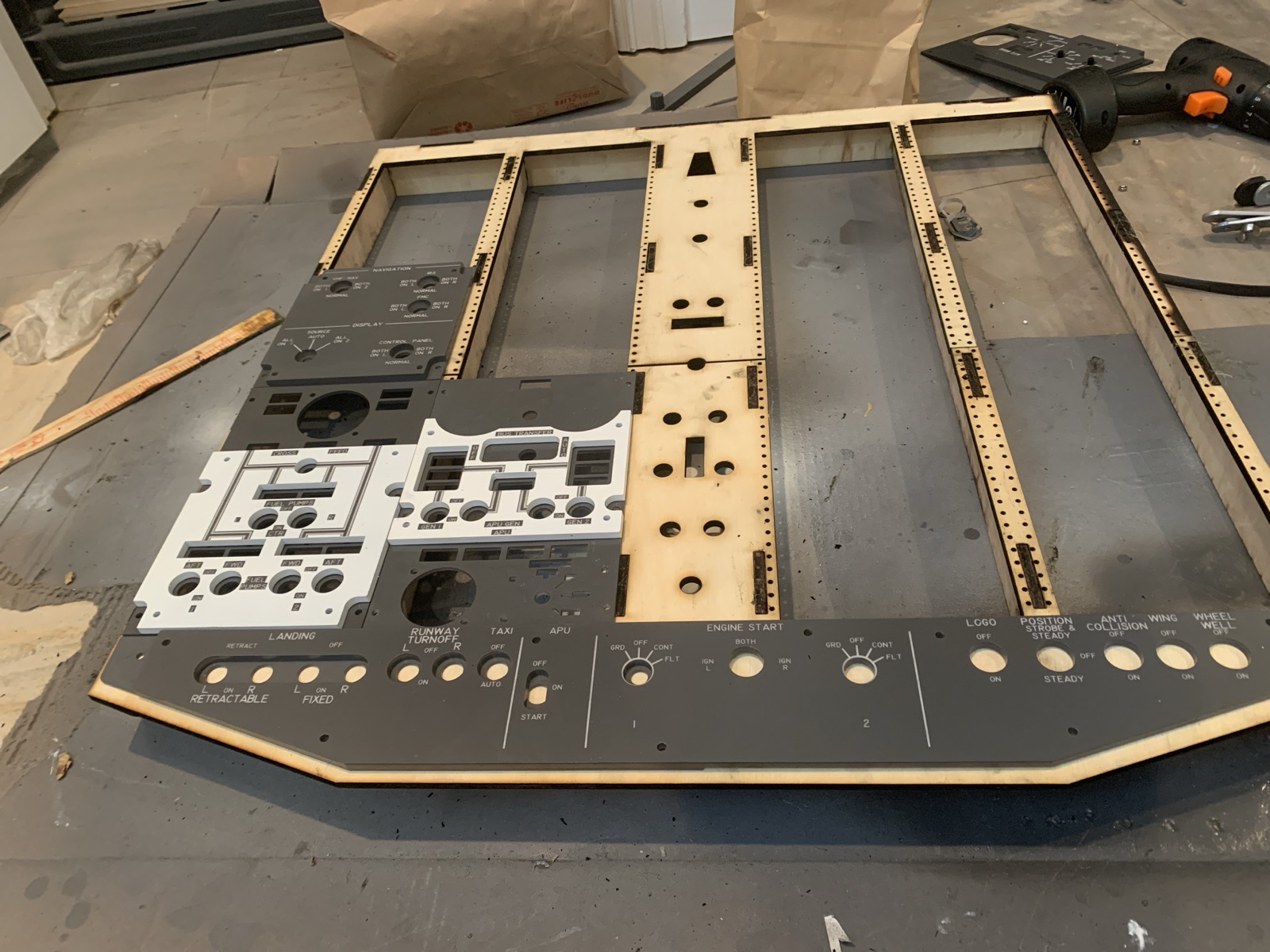

Vector layout of the laser cut plywood frame pieces including rails, dividers and side walls Assembled plywood overhead frame on the workbench with some panels test fitted into place
