Landing Gear Panel

2022

This is the landing gear panel from my homemade 737 flight simulator cockpit. The face is a tall grey plate with a long slot for the gear lever, engraved OFF and DN positions, and the landing gear and flaps limit speed tables printed below. I mounted it into the main panel structure and wired its switches on the back side by hand so the gear positions could drive Microsoft Flight Simulator 2020.

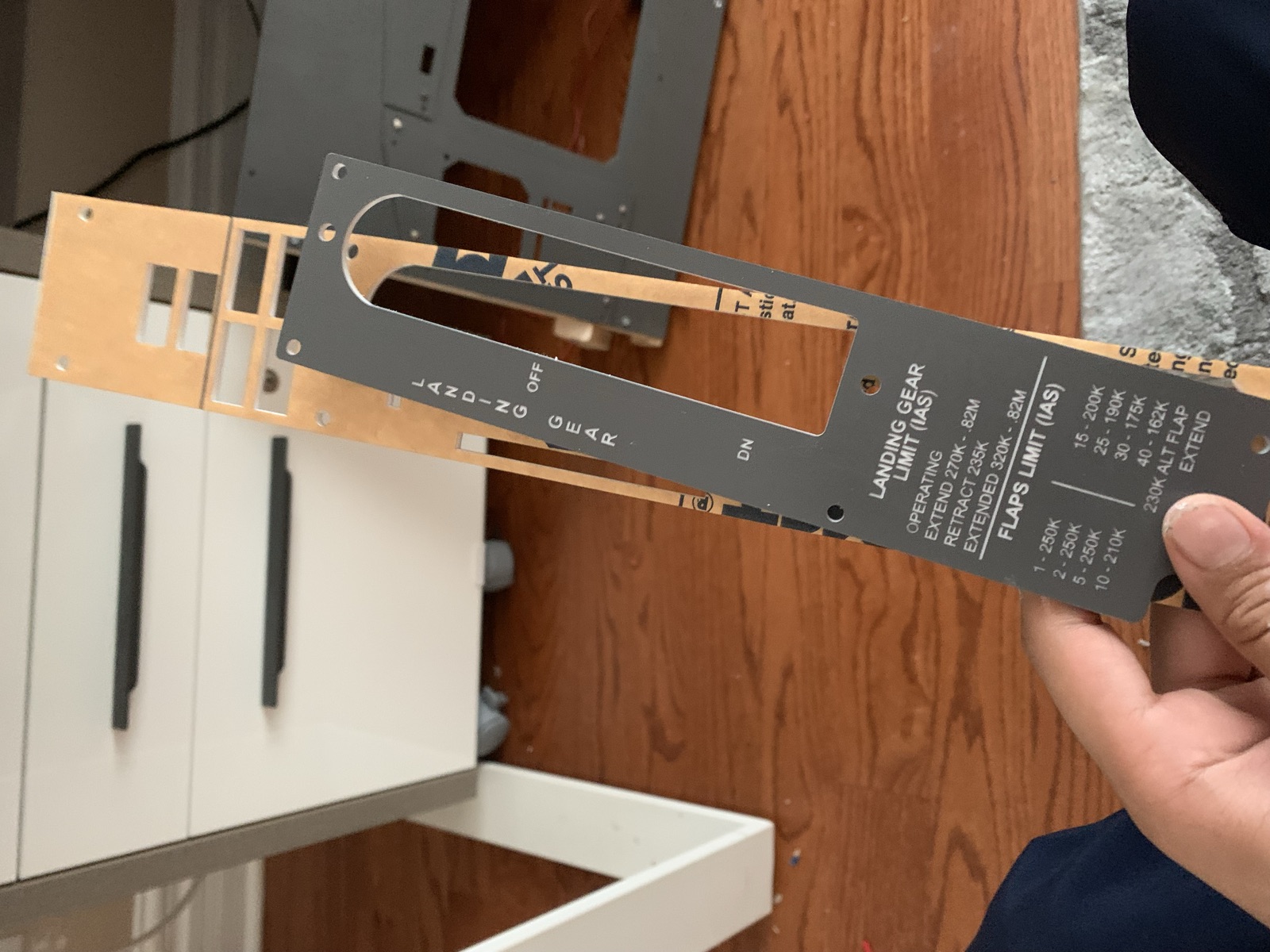

Landing gear panel face with engraved gear lever slot and limit speed tables

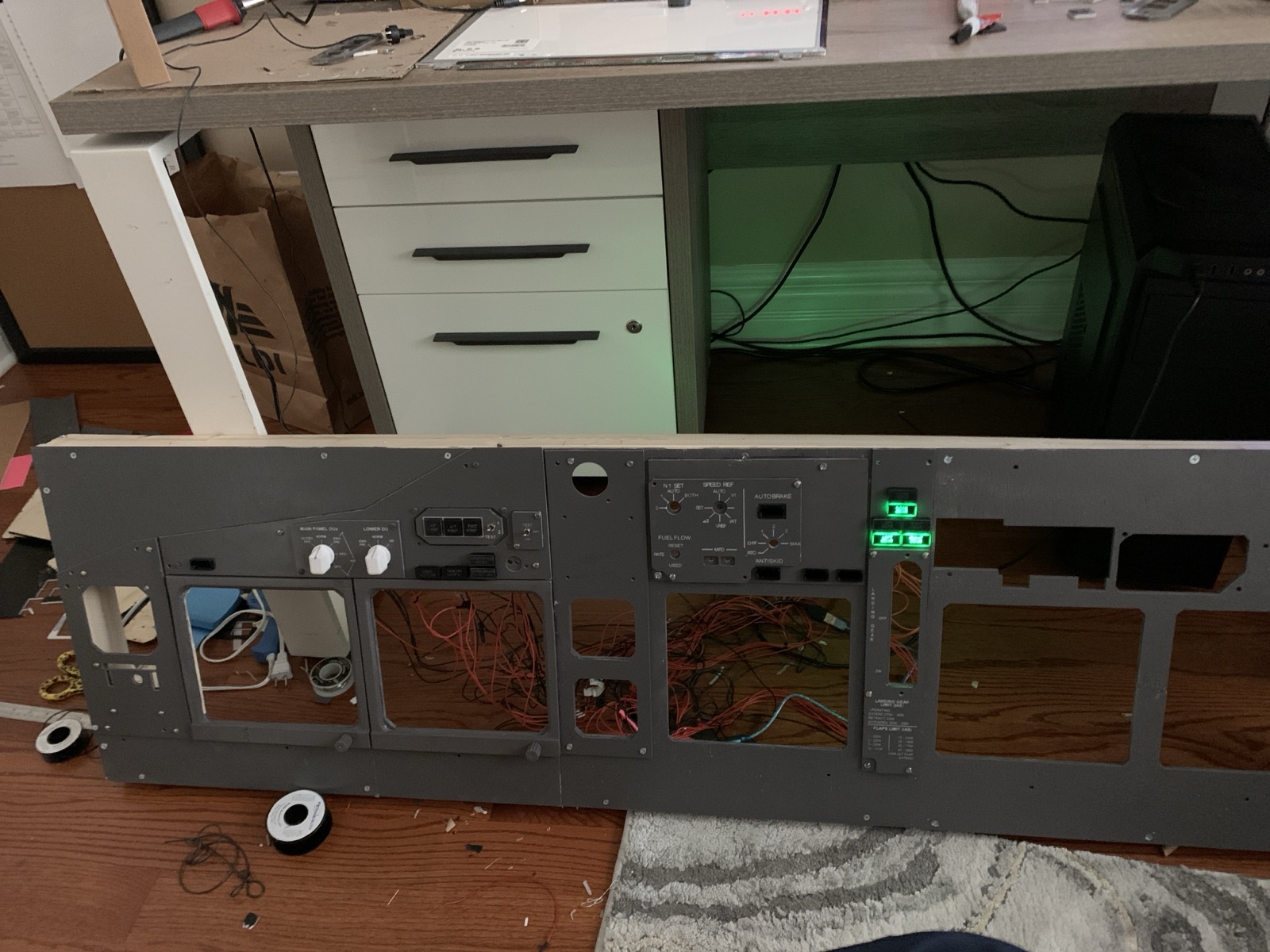

Landing gear panel installed in the main panel with green indicators lit

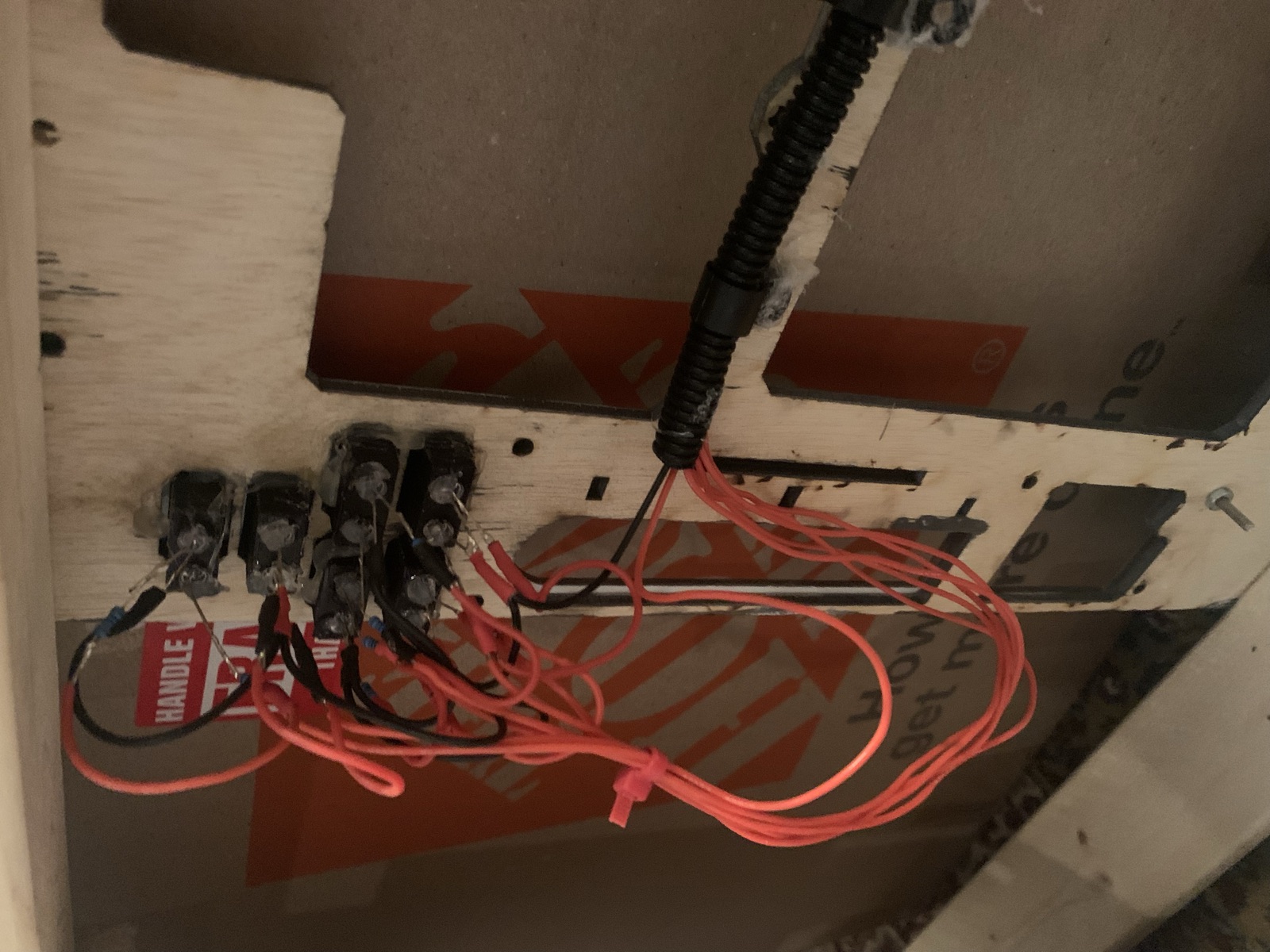

Back side of the panel showing the hand wired switches and red and black leads
