High Stakes State Robot Intake

2025

This is the intake from my VEX V5 High Stakes state robot. The preroller is powered by a 5.5W motor at 360 RPM, with the motor connected straight to the preroller. It is a lightweight poly intake with cut poly sleds that I tuned a lot, and poly flaps hold the ring in place. The conveyor is separate from the intake and runs 11W at 600 RPM.

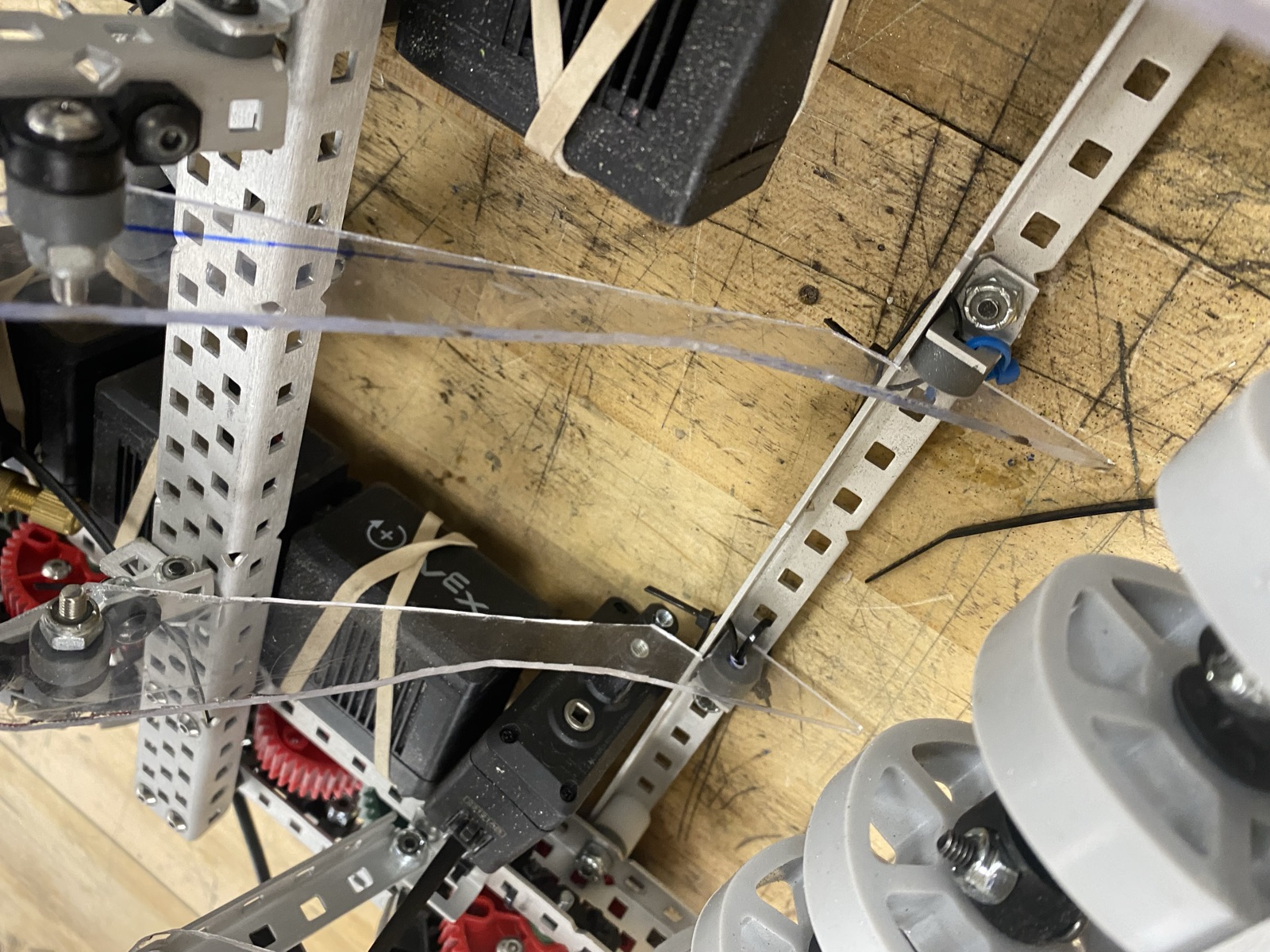

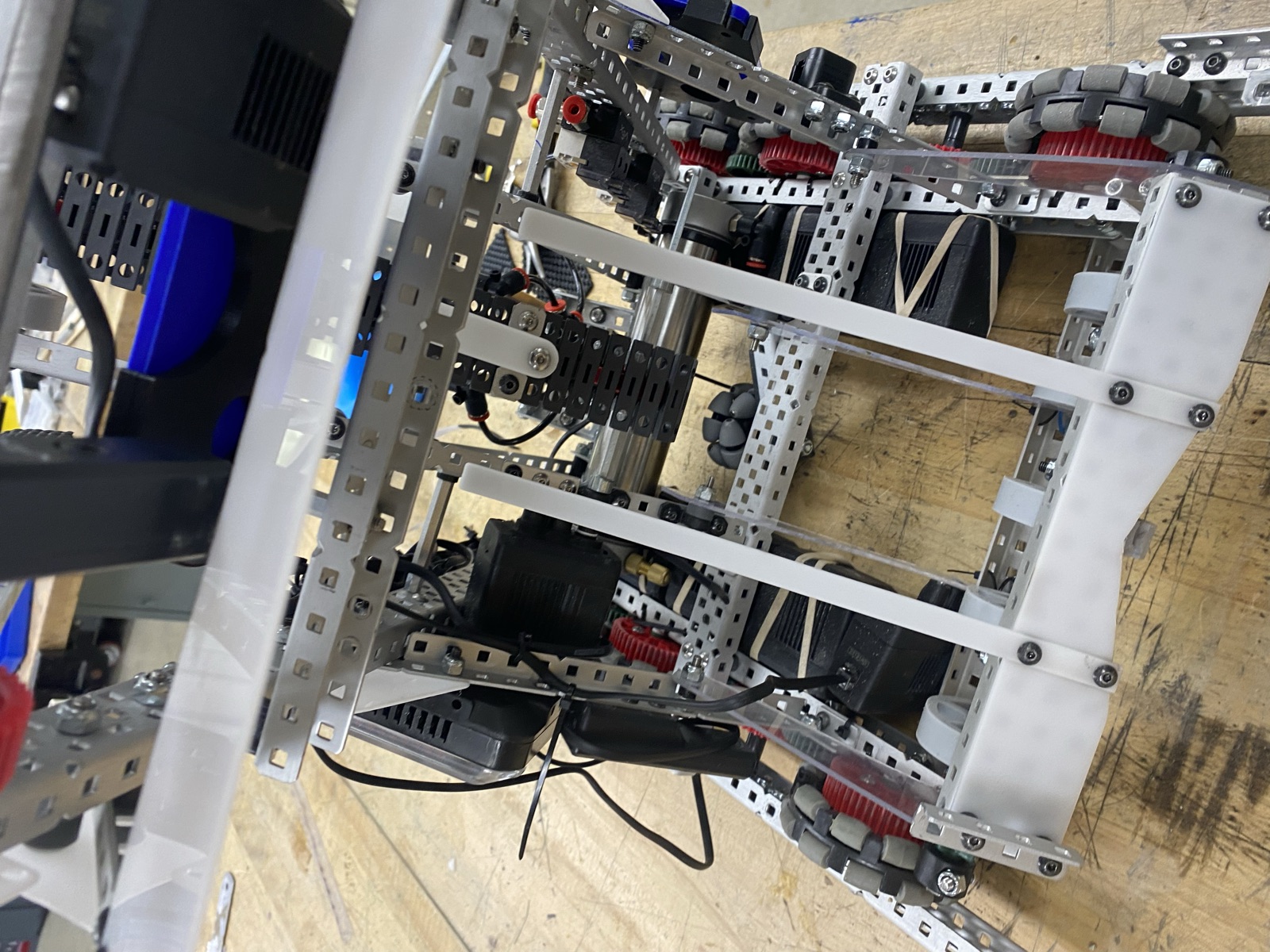

Intake mounted on the robot during assembly Close view of the intake ramp and preroller
