Fuel Pump Overhead Panel

2023

This is the fuel pump overhead panel from my homemade 737 cockpit. It carries the CROSS FEED valve switch at the top and the FUEL PUMPS switches for the left, right and center tanks along with the forward and aft pumps for tanks 1 and 2, each labelled OFF and ON. The design files show the panel artwork and the cut outline, the finished laser cut face held in hand, and the back side where I hand soldered the switches with resistors and ran the wiring across the panel.

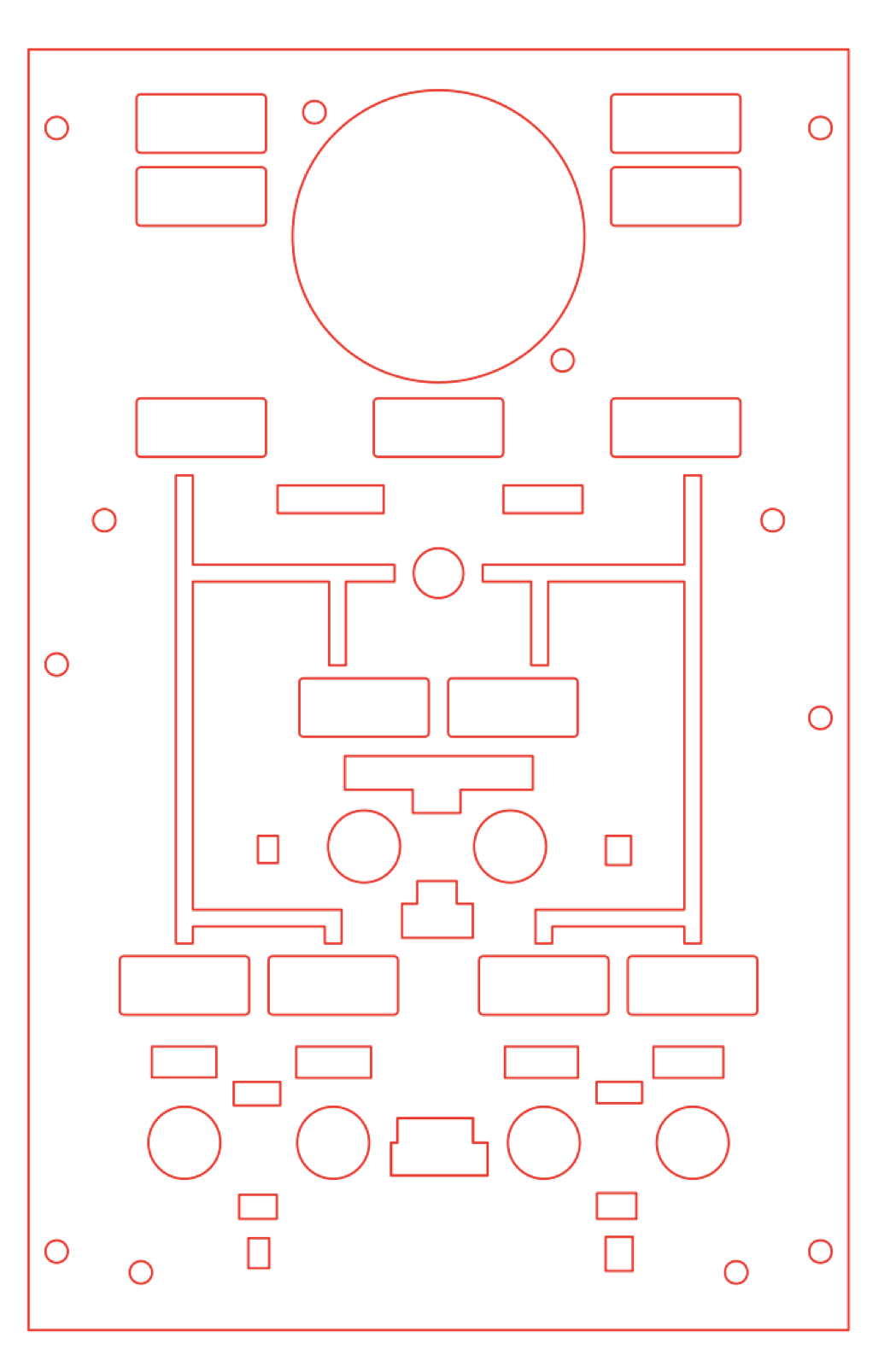

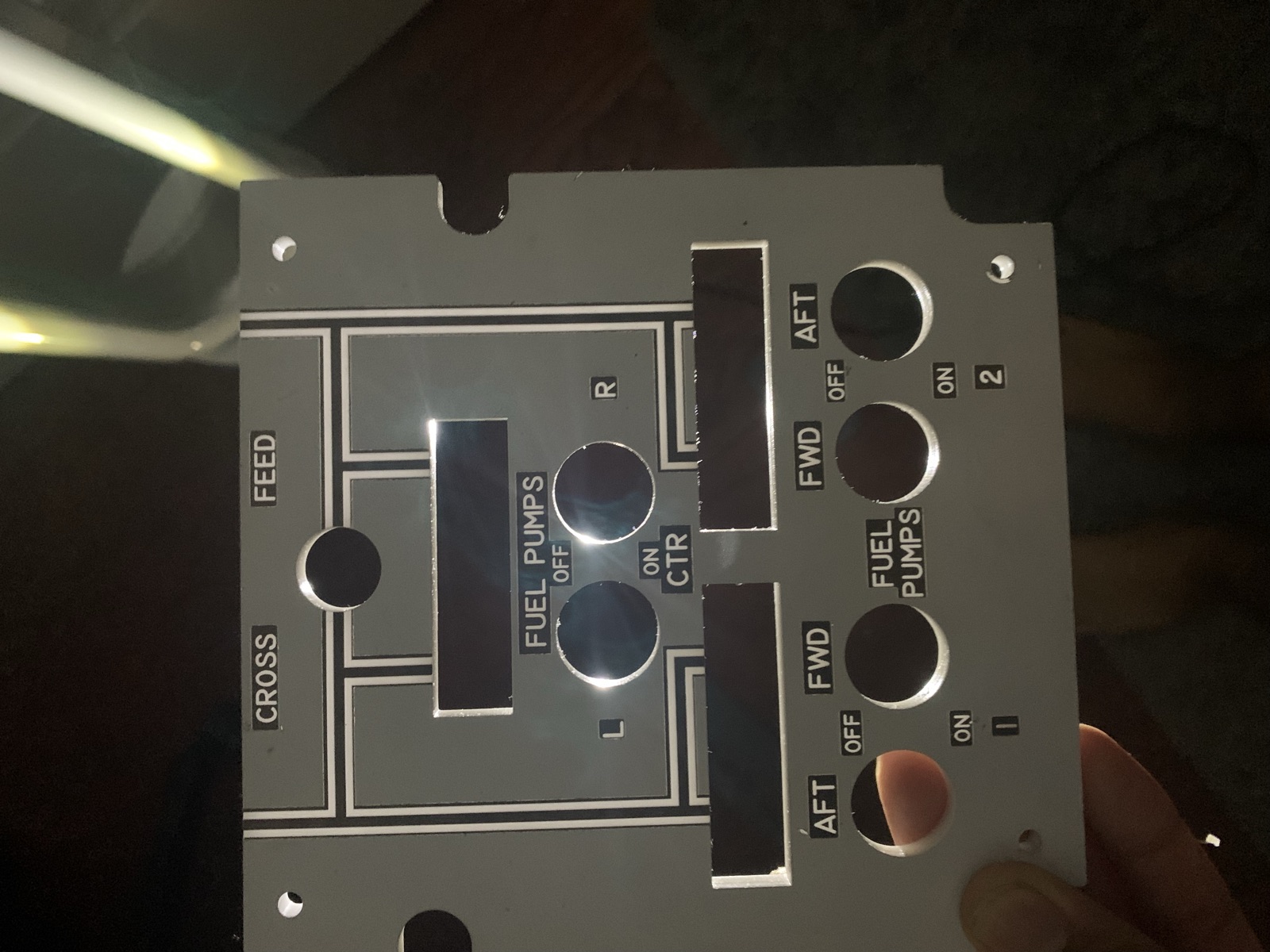

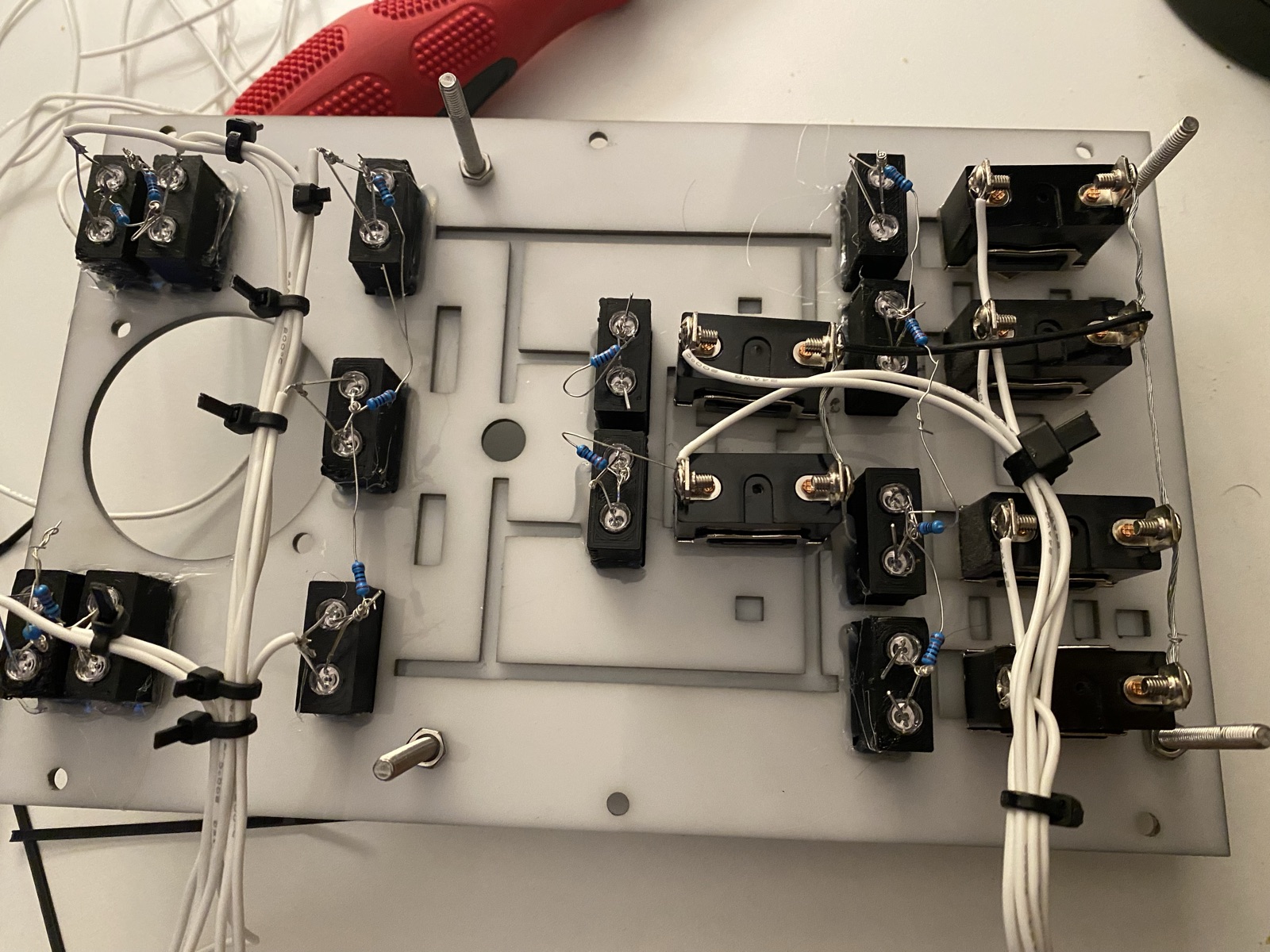

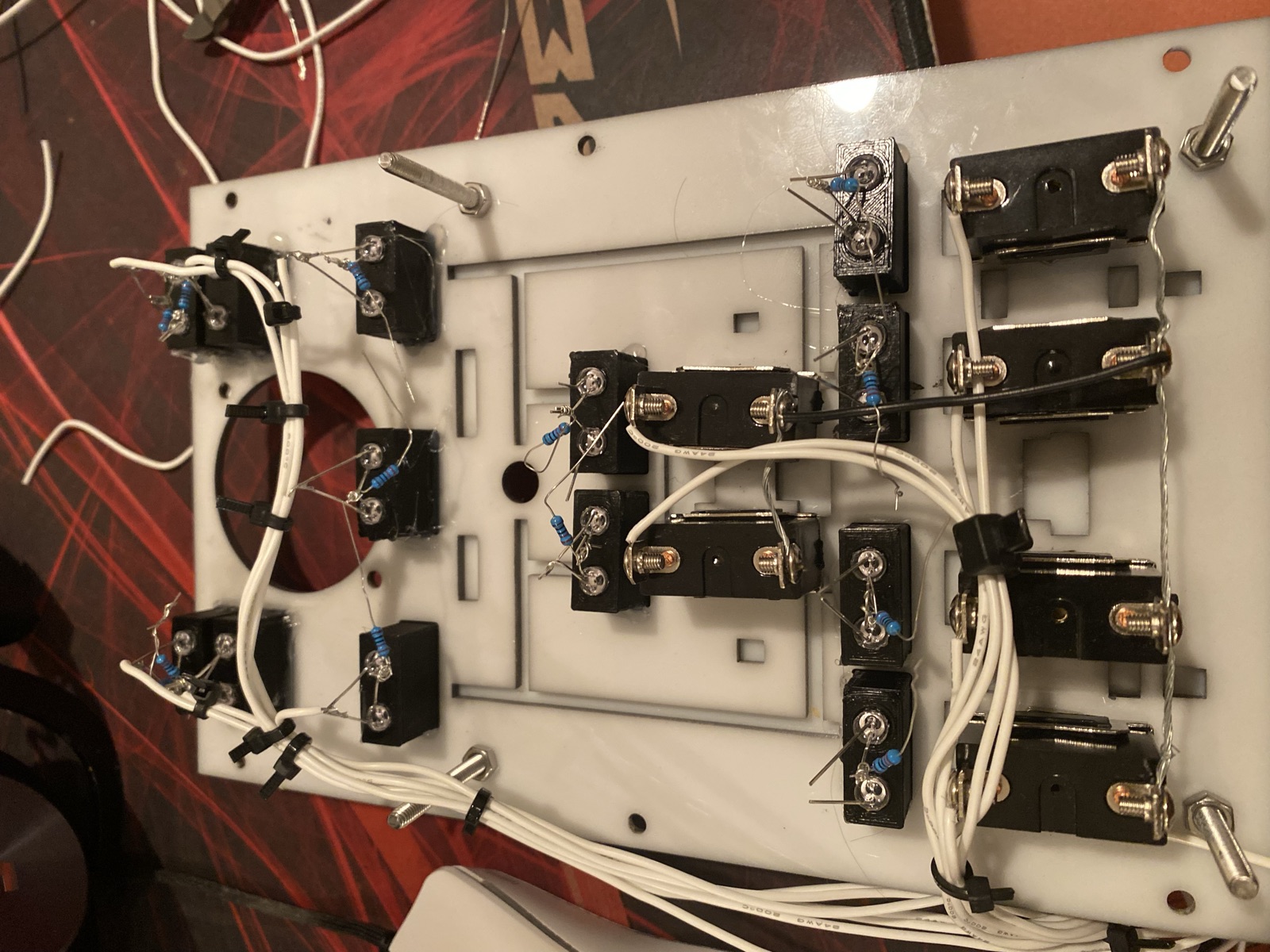

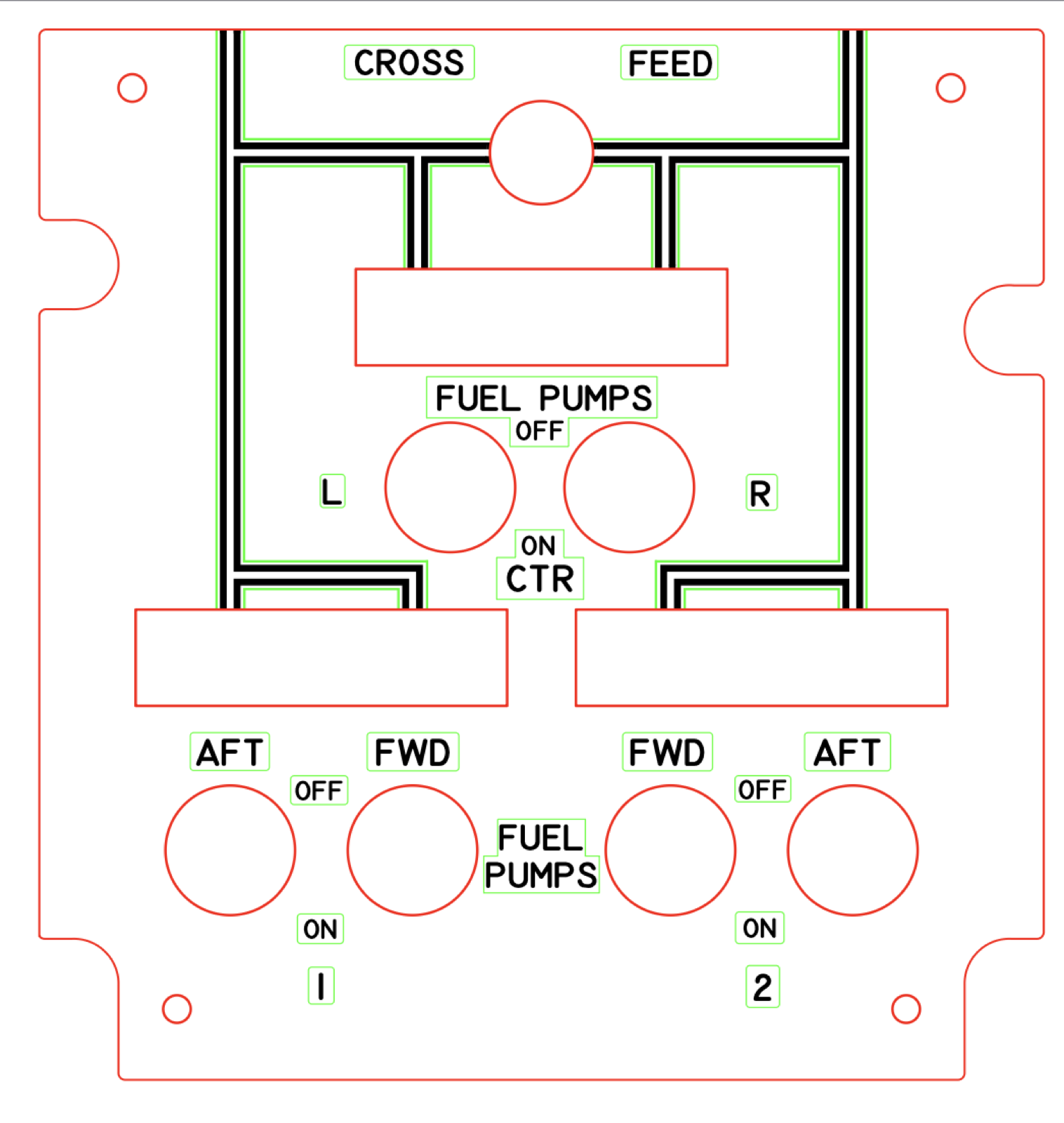

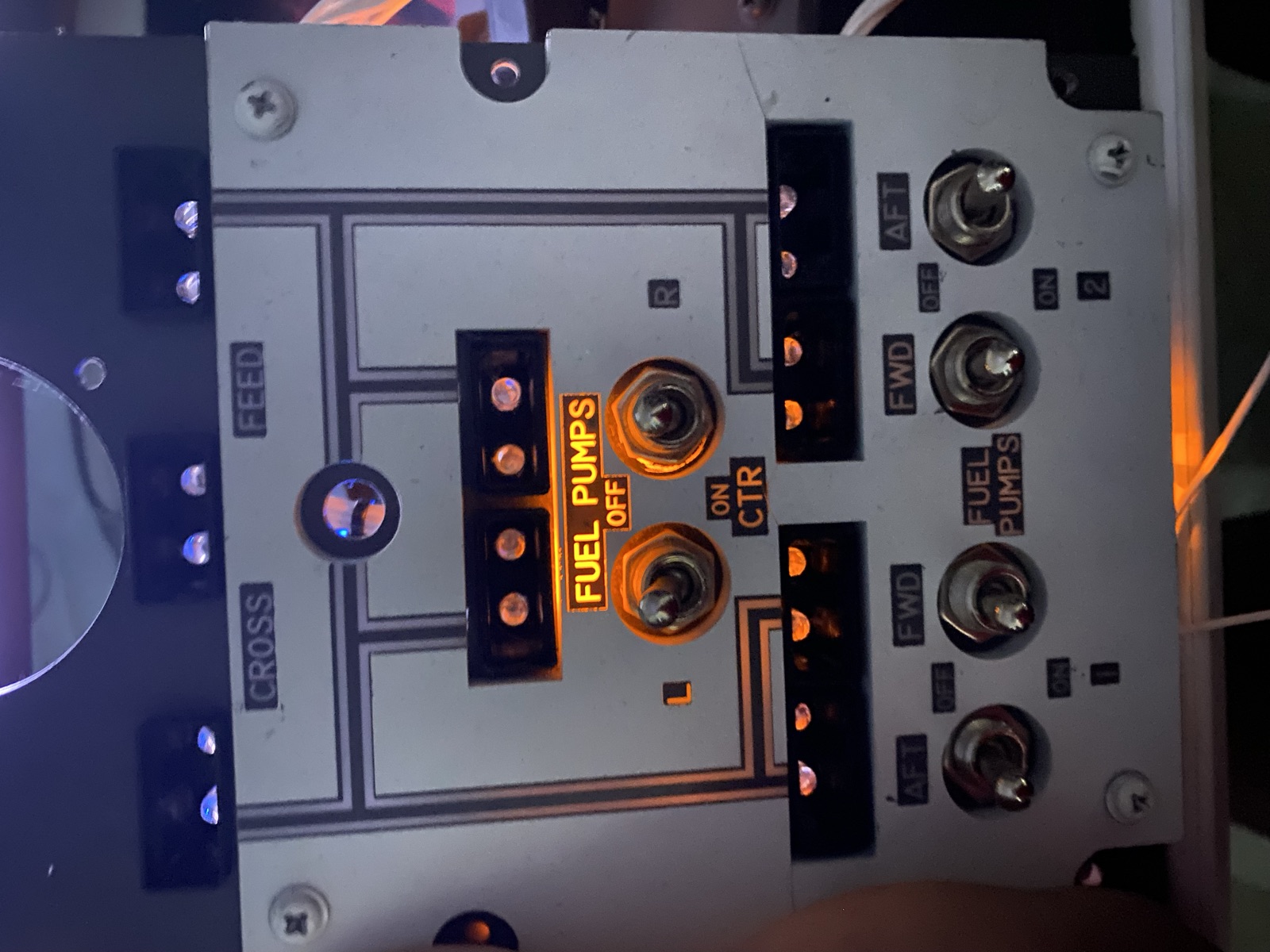

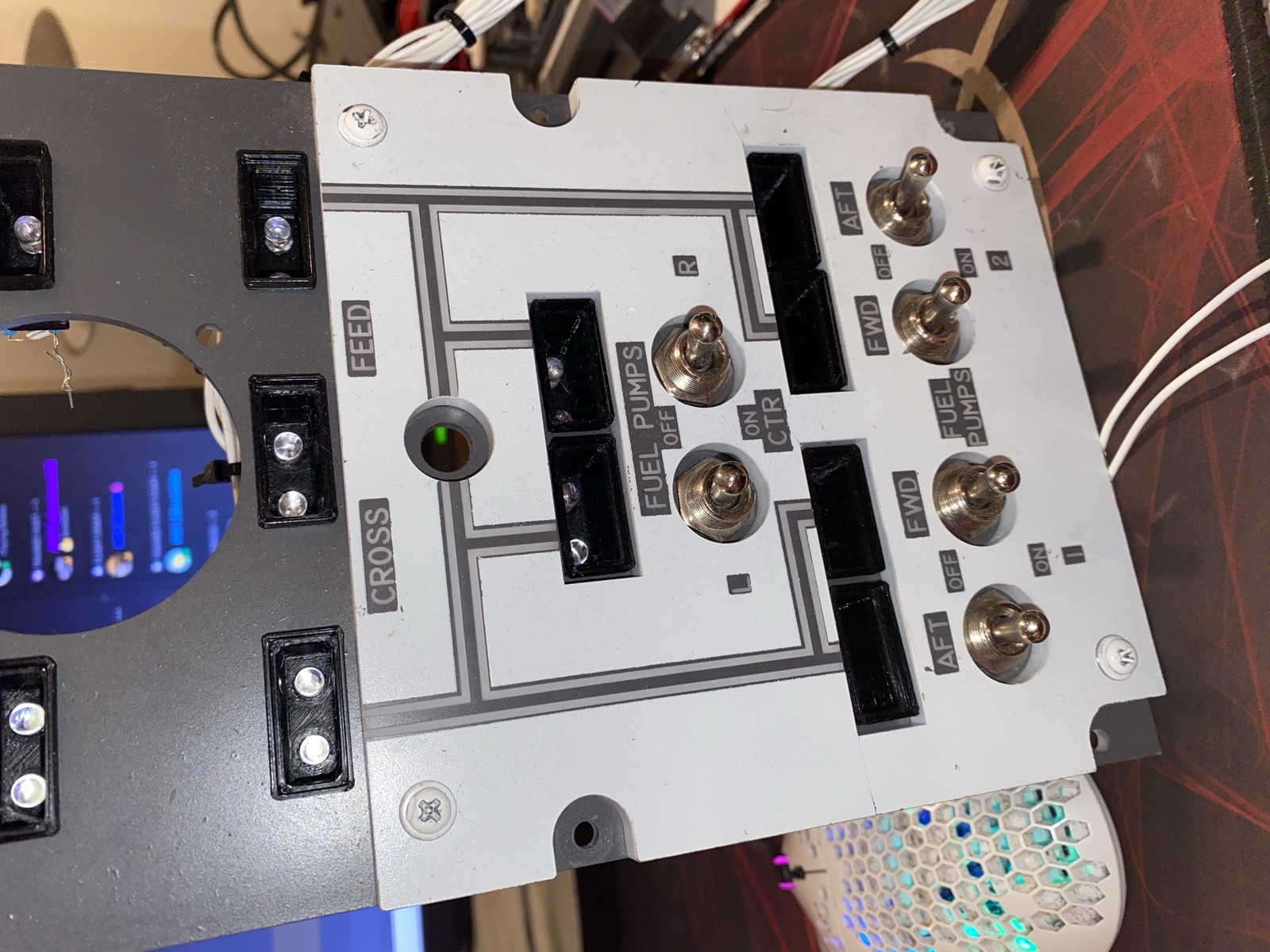

Fuel pump overhead panel design with crossfeed and fuel pump labels Fuel pump overhead panel cut outline with switch and light openings Finished laser cut fuel pump panel face held in hand Fuel pump panel front detail under light Back side of the fuel pump panel with hand soldered switches and resistors Wiring routed across the back of the fuel pump panel Close view of soldered switch terminals on the fuel pump panel
