Display Unit (DU) Panel

2022

This is the display unit selector panel from my homemade 737 cockpit. The laser cut face carries the MAIN PANEL DUs rotary with its OUTBD PFD, NORM, ENG PRI, PFD, MFD and INBD positions, alongside the LOWER DU rotary with ENG PRI, NORM and ND. I designed the labels and the switch openings as a laser cut vector and cut the dark faced panel, then fit rotary switches into the two openings. Once installed it sits in the cockpit frame with red and black wiring running down from the switches on the back side.

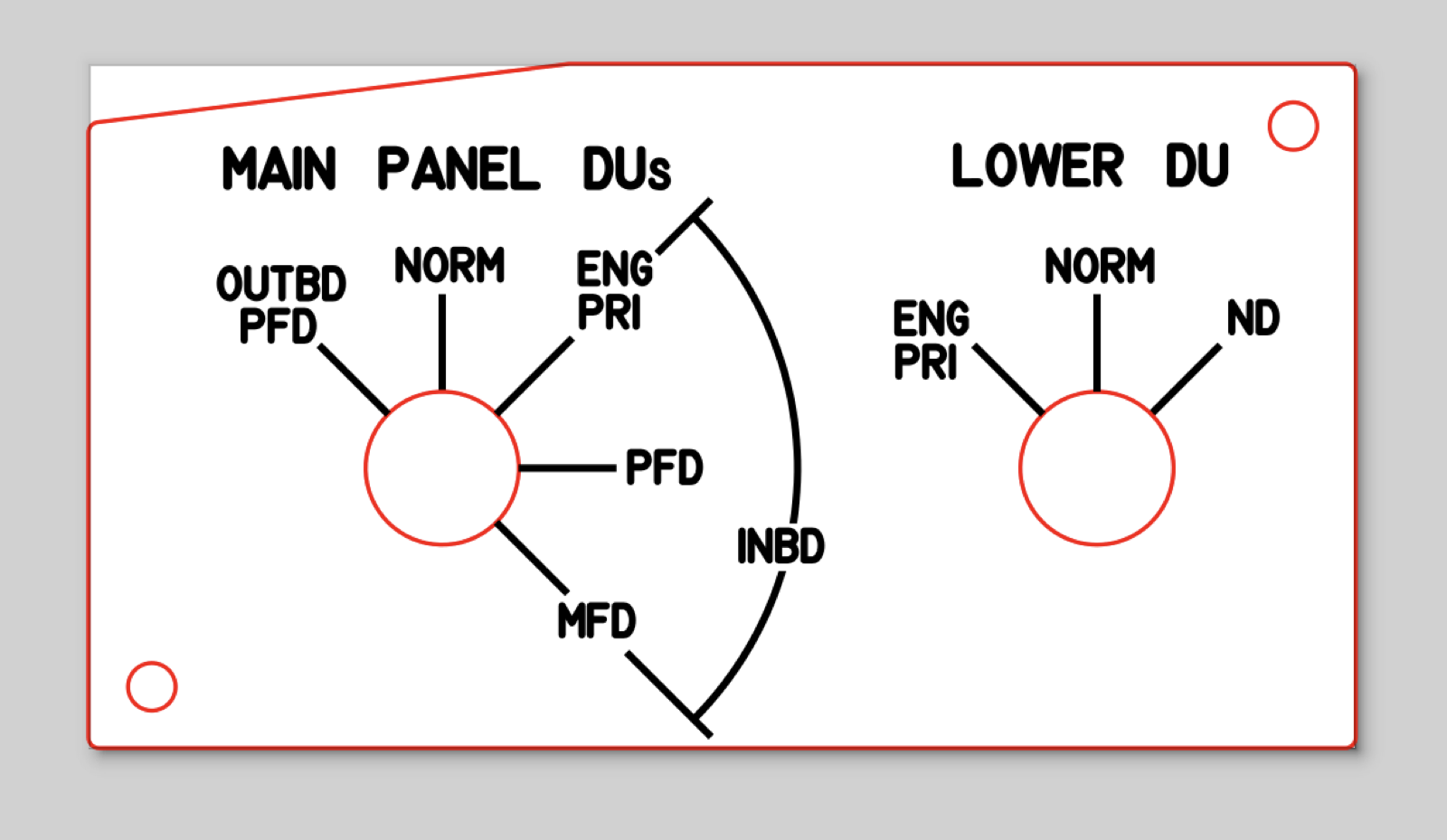

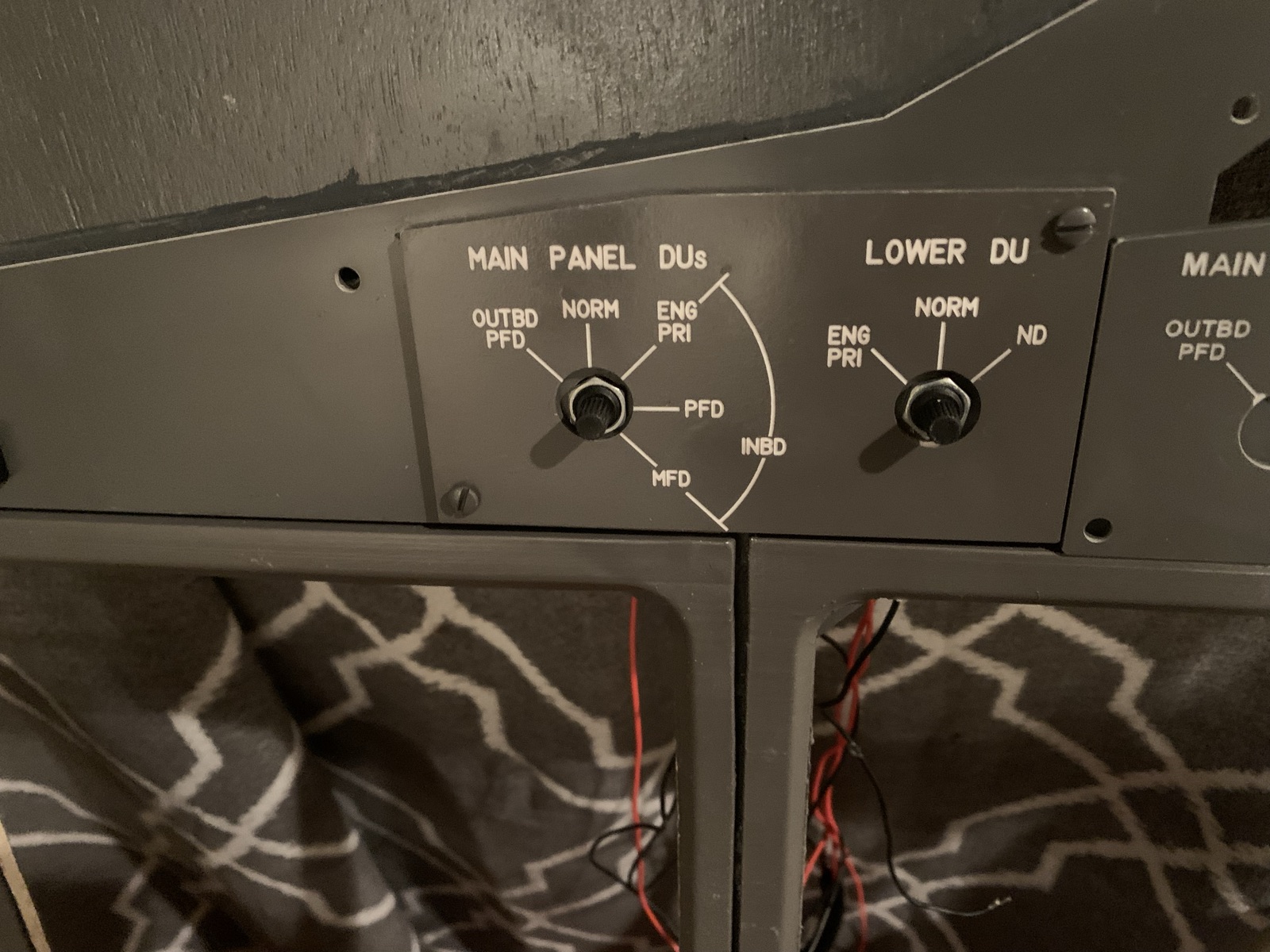

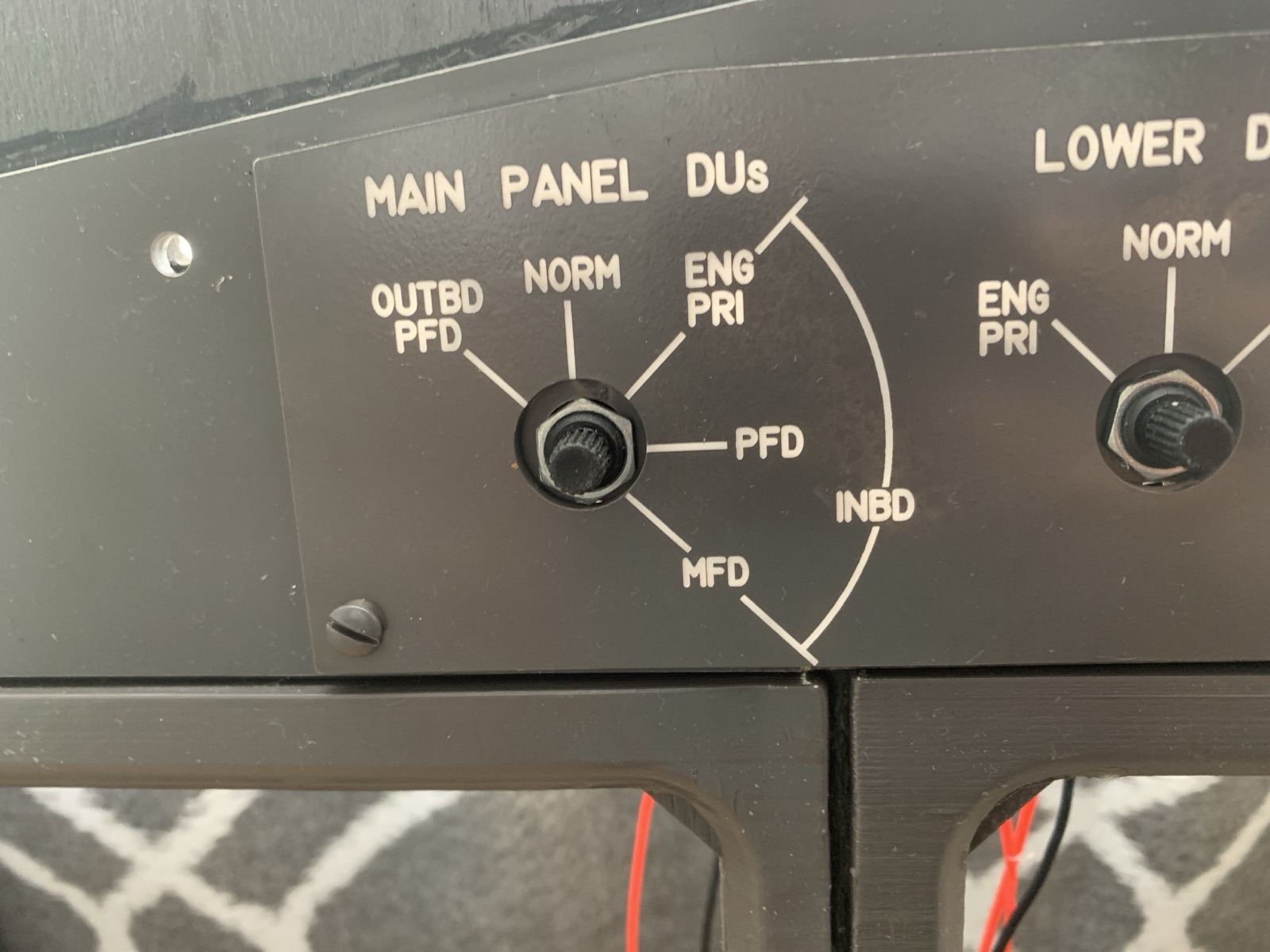

Laser cut vector design for the display unit selector panel with MAIN PANEL DUs and LOWER DU dials Close view of the cut display unit panel showing the MAIN PANEL DUs rotary and its labeled positions Display unit panel mounted in the cockpit frame with wiring hanging below Display unit panel installed alongside the neighboring panels
